Hygienic solution for large control systems
13 June 2018

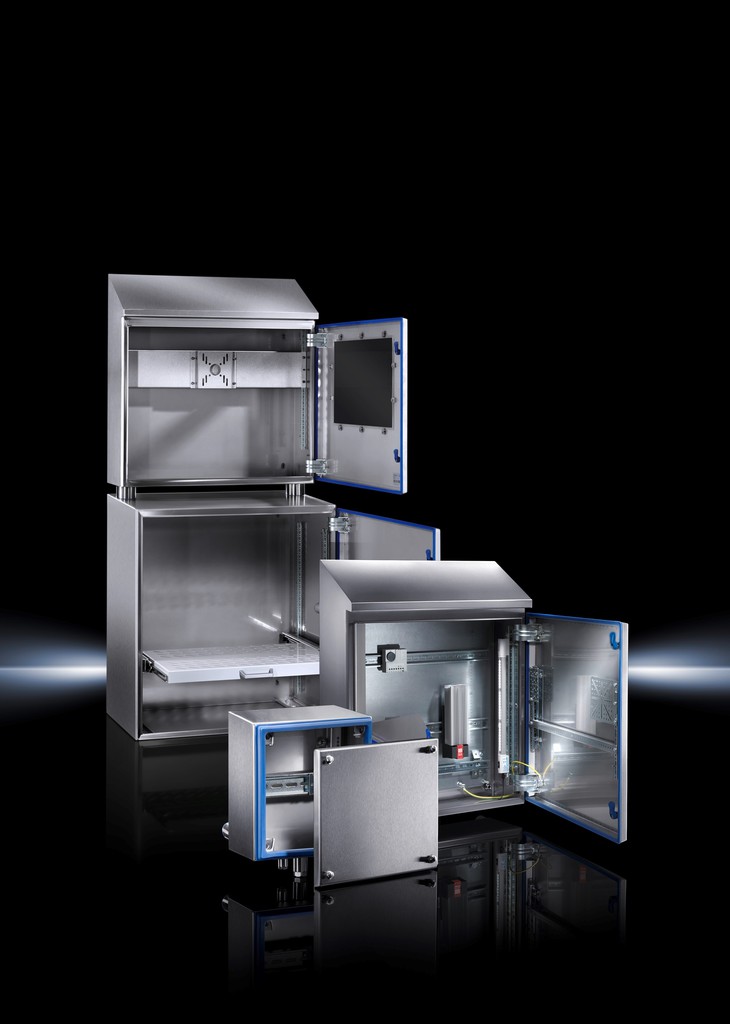

Rittal’s Hygienic Design System enclosures combine the features of its Hygienic Design Compact enclosures with a modular, bayable configuration.
They deliver a flexible and hygienic solution that protects installed electrical and electronic equipment, even in washdown areas.
The addition of standard accessories from Rittal’s TS 8 range, plus the flexibility afforded by baying, as well as the ability to swap the door handles, gives users a solution that can be tailored to suit even complex control systems in production clean rooms.
The Hygienic Design System enclosure eliminates dead space and dirt traps, which reduces the risk of both direct and indirect cross-contamination.
Features that help improve hygiene levels include:
- Hinge and lock components located inside the seal face
- Internally secured sloped roof and side panels
- Blue-dyed silicone seals
- Special protruding lock inserts
- Hygienically designed accessories, including glands, levelling feet and viewing window
The lack of dead space and dirt traps makes cleaning easier; the roof is angled at 30° and all gaps are at least finger-size.
The enclosure has an ingress protection category of IP 59K. As such, it shields installed equipment from dust, dirt, and powerful, high-temperature, water jets, during production and cleaning, even in washdown areas.
