Purification to ISO standards
28 August 2018
The international standard for compressed air quality, ISO 8573:2010, is the primary documentation to facilitate compressed air systems component selection, design and performance measures. Hi-line Industries has been working closely with the British Compressed Air Society to produce a best practice guide for the filtration and drying of compressed air.

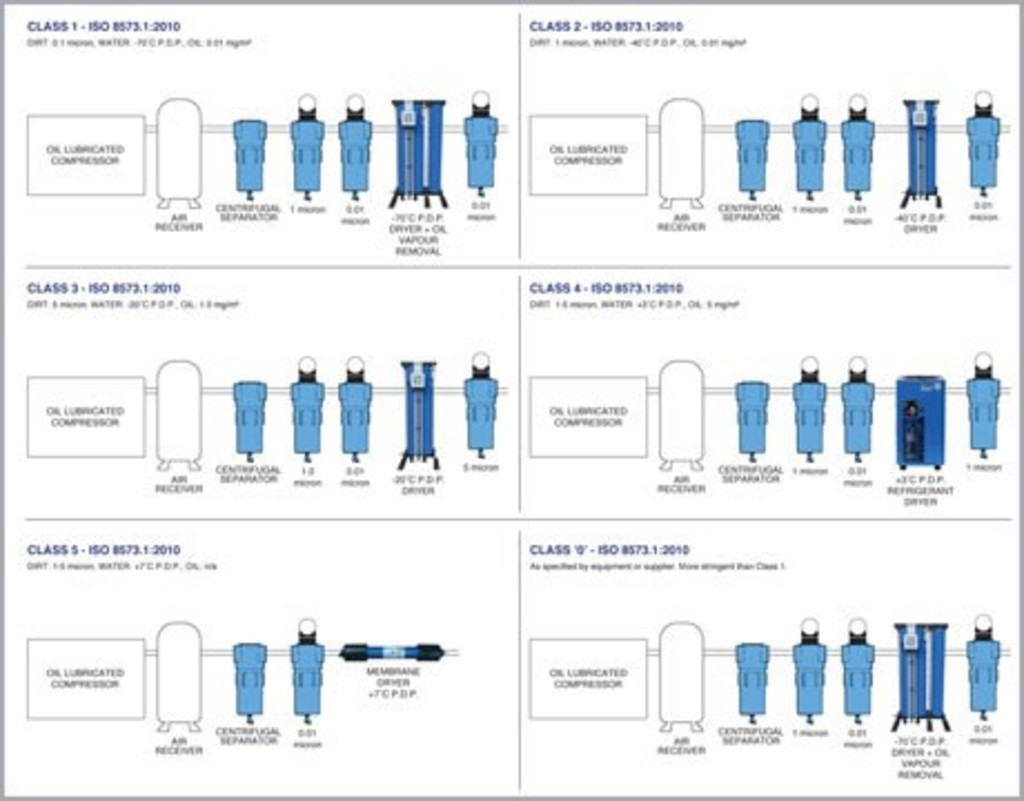

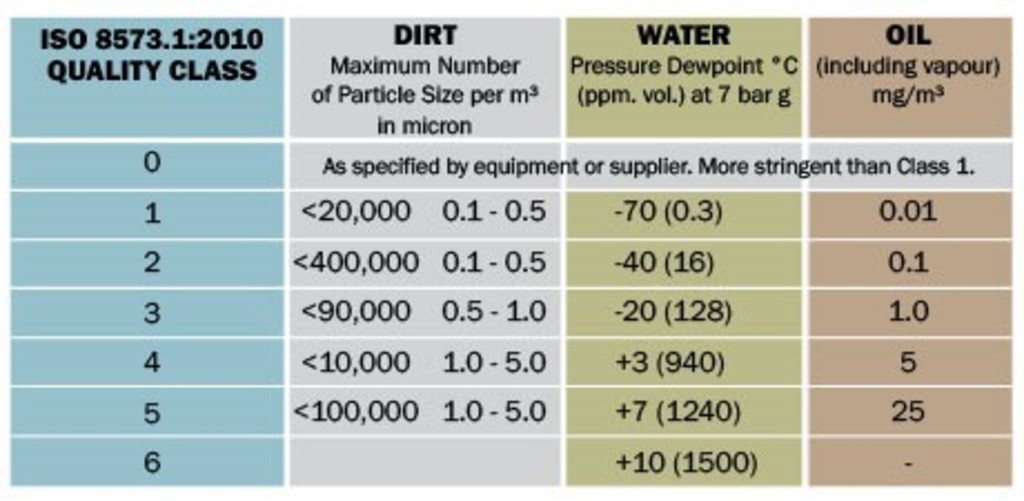

The ISO standard introduces a simple system of classification for the three main contaminants present in any compressed air system – particulate, water and oil. Whenever the purity of air required is specified then the standard must be referenced and then the class for each contaminant is simply listed in turn.
For example, compressed air to quality class 2.2.2 would be equivalent to a maximum particle size of 1 micron for solid contaminants, a pressure dewpoint of -40°C or lower and 0.1mg per cubic metre of compressed air of oil content filtration.
Hi-line Industries provide a wide range of energy efficient compressed air equipment to meet ISO standards including compressed air dryers, nitrogen and oxygen generators, filtration equipment, condensate systems, heat regenerative adsorption dryers, membrane dryers, drains and service kits.
All equipment is designed and built to the highest standards and quality and suitable for use in a broad range of industries ranging from food, beverage, pharmaceutical, medical, dairy, automotive, electronics and breathing air, through to general manufacturing and engineering requirements.
All Hi-line products are supported by a nationwide network of Hi-line service engineers, for the service and maintenance of air dryers of all brands both adsorption and refrigeration.
The Filtration & Drying of compressed air guide (216-1) will be available to download from the BCAS website shortly.
