Controller and gateway
08 January 2020

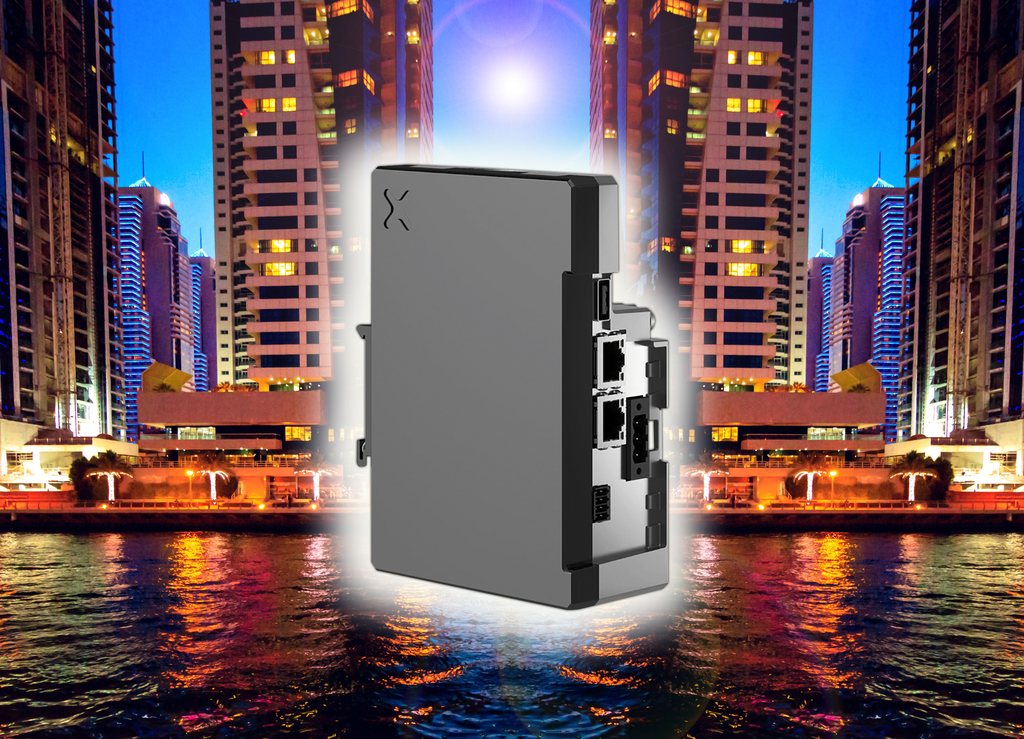

Carlo Gavazzi's XAP 1.0 compact controller and gateway with embedded IIOT (Industrial Internet of Things) allows seamless connection of multiple devices and sub-systems.

Using the standard IEC 61131 CODESYS, the XAP supports network stacks and local I/O expandability and provides easy programming while the configurable web interface is said to make it an outstanding web HMI, with easily programable graphic pages, functions and protocols. The two ethernet ports offer network segregation for WAN/LAN.
The XAP is simple to connect to other devices as it offers multiple standards such as CODESYS, OPC, UA, KNX IP and BACnet as well as data distribution via MQTT. The Linux-based operating system is designed to be resistant to surveillance and interference, whilst the HTTPS provides secure web server access.
By providing internet and web-serving capability, the XAP together with UWP provides integrated control and supervision to ensure optimisation of both lighting and HVAC applications in your building. Carlo Gavazzi says this can dramatically decrease energy usage and – in turn – your energy bill.
