Additions to relay range
25 January 2013
Eaton's electrical sector is now offering its easy800 control relay with Smart Wire-DT. The easy800 family is being extended with two new devices which offer the features of the easy800 control relay, combined with Smar

Eaton's electrical sector is now
offering its easy800 control relay
with Smart Wire-DT. The easy800
family is being extended with two
new devices which offer the features
of the easy800 control relay,
combined with Smart Wire-DT, a
connection and communication
technology from Eaton.

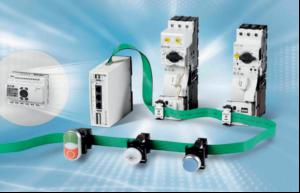

The new switching devices are connected to Smart Wire-DT (SWDT).
Up to 99 Smart Wire-DT slaves with over 160 inputs/outputs can be connected to the devices for adequate control of small or medium-sized machines. Both come with serial interface as standard for programming or connecting a remote display such as the Eaton MFD-Titan multi-function display.
The first device, EASY802-DCSWD, has two power supply inputs: POW for supplying the device and the SW-DT slaves, and AUX for the 24V DC supply of connected contactors. The wide range of function blocks provided by easy800 are also available, such as: multifunction timing relays, counters, text outputs, value inputs, 7-day and year time switches, P-PI-PID controllers and maths function blocks, opening up a range of different applications.
The second device, EASY806-DCSWD, has all the functions of the standard device plus four digital inputs (24V DC) used for high-speed counter functions. It has a wide application range, regardless of whether it is used as a single-channel counter (to 5 kHz), frequency counter (to 5 kHz) or as a two-channel incremental counter (to 3 kHz).
The new switching devices are connected to Smart Wire-DT (SWDT).
Up to 99 Smart Wire-DT slaves with over 160 inputs/outputs can be connected to the devices for adequate control of small or medium-sized machines. Both come with serial interface as standard for programming or connecting a remote display such as the Eaton MFD-Titan multi-function display.
The first device, EASY802-DCSWD, has two power supply inputs: POW for supplying the device and the SW-DT slaves, and AUX for the 24V DC supply of connected contactors. The wide range of function blocks provided by easy800 are also available, such as: multifunction timing relays, counters, text outputs, value inputs, 7-day and year time switches, P-PI-PID controllers and maths function blocks, opening up a range of different applications.
The second device, EASY806-DCSWD, has all the functions of the standard device plus four digital inputs (24V DC) used for high-speed counter functions. It has a wide application range, regardless of whether it is used as a single-channel counter (to 5 kHz), frequency counter (to 5 kHz) or as a two-channel incremental counter (to 3 kHz).
