Indicates wear on large sprockets

Eliminating the guesswork traditionally associated with wear checking, the indicator is said to protect investment in capital equipment, helps eliminate breakdowns and allows efficient management of maintenance scheduling.

Modern sprockets, such as those from Tsubaki, offer long life, reliable performance and the ability to withstand shock loads. However, they will still wear over time, with the tooth profile changing shape and no longer fully supporting the roller drive chain. Gradually the rate of wear of both sprocket and chain accelerates and this can result in loss of tension, jumped chain, drive slipping and catastrophic failure.

Because all of this happens over an extended period of time, it is difficult to see the amount of wear that has occurred. In the worst case scenario, a high load drive could fail catastrophically possibly resulting in injury to personnel, damage to equipment and loss of production due to extensive downtime.

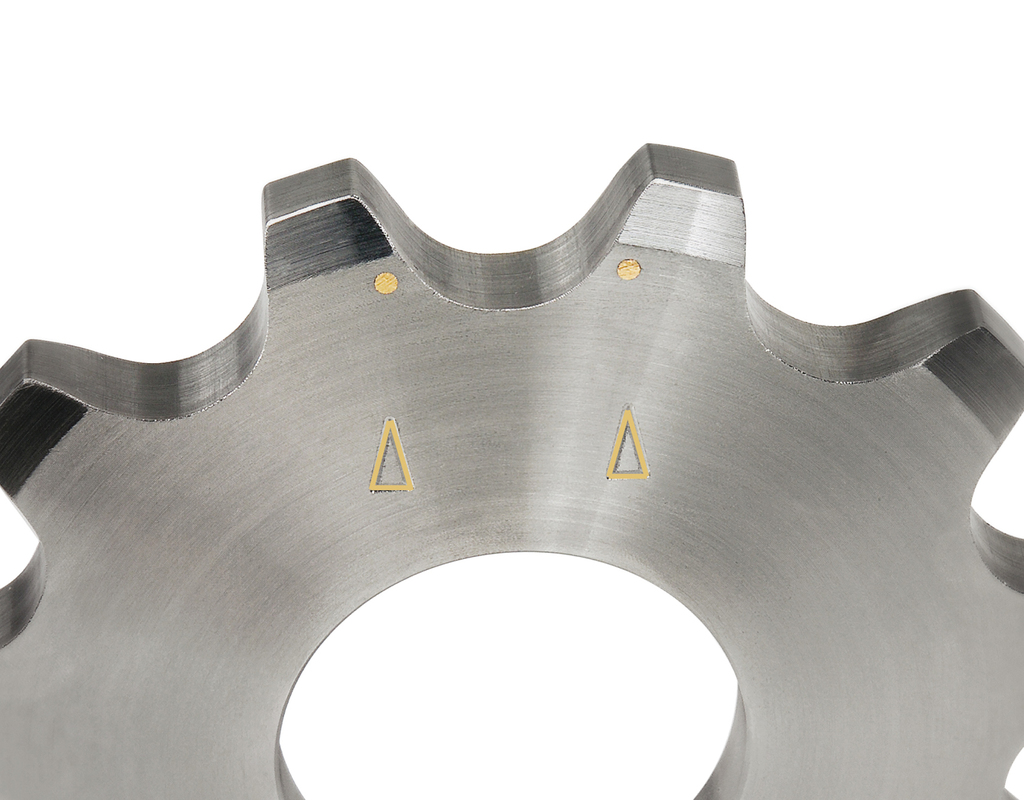

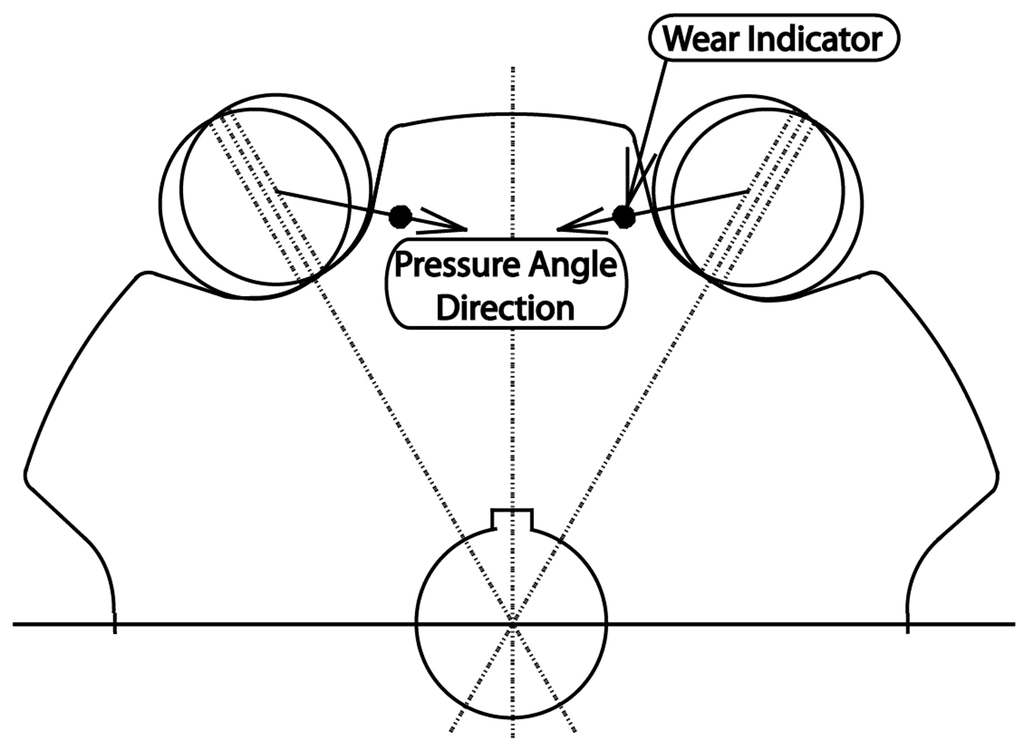

Tsubaki's Wear Indicator provides a simple and effective solution. Wear pins are positioned on the thrust face of the sprocket teeth adjacent to the point where the drive chain will exert the most pressure. In use, each tooth wears towards the pin and by measuring the distance between the tooth edge and the pin, wear is assessed and an objective decision on sprocket replacement can be made.
