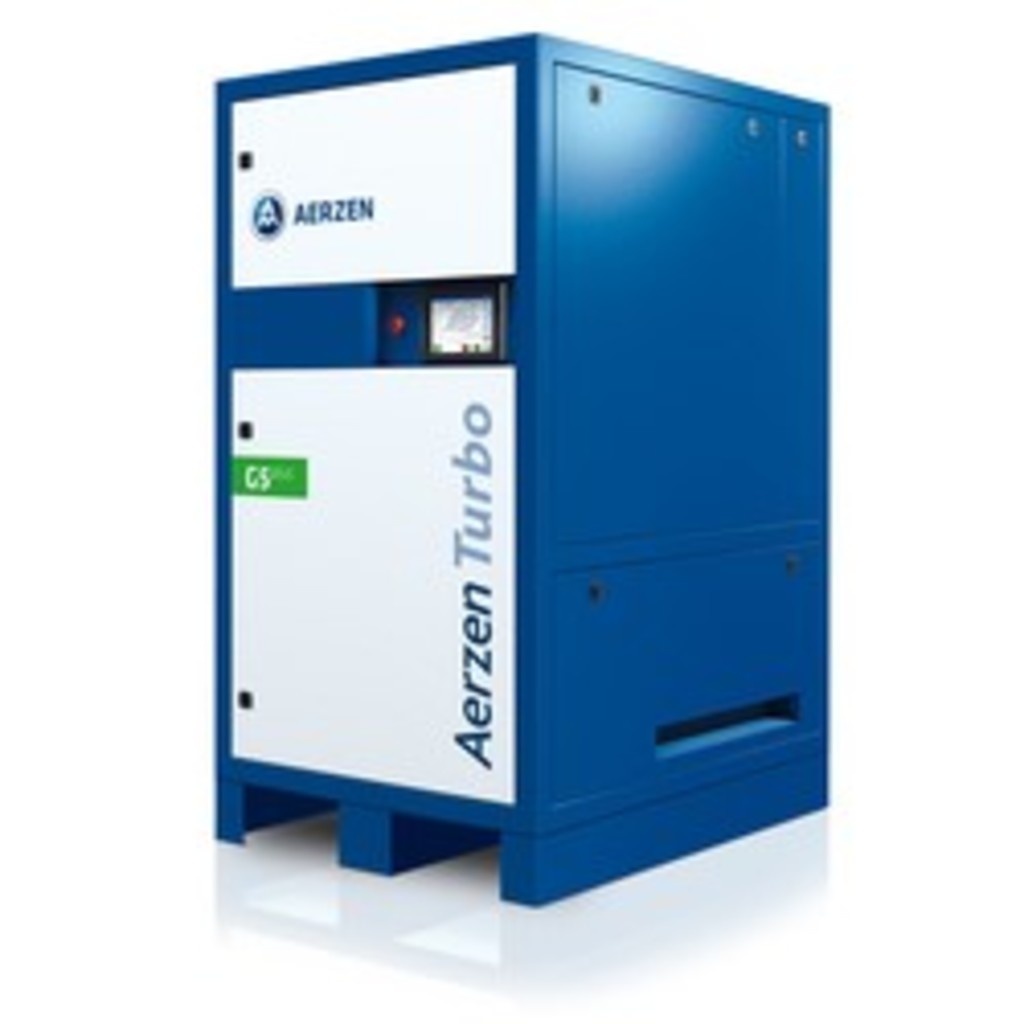

AERZEN TURBO BLOWER GENERATION 5plus

The Aerzen Turbo G5plus series now presented lives up to its name because of the various advantages it provides. The new turbos have an extremely compact design and require very little space. Another outstanding feature is the innovative AERZEN air foil bearings with double coating and the new multilevel frequency converter technology (> 55 kW), which reduces the heat loss in the motor to a minimum, improving the total efficiency significantly. Additionally, an extra motor throttle or a sine filter, which must be used on conventional frequency converters, is no longer necessary.

Advantages:

• Increase in energy efficiency by up to 10 percent compared to conventional turbo technology
• Extended bearing life thanks to innovative AERZEN air foil bearings with double coating, maximum reliability even under extreme operating conditions
• 100 % oil-free
• Low maintenance effort, only regular filter change
• Extended application possibilities at ambient temperatures up to 50 °C
• Active pump protection through automatic speed increase
• Space saving design

Design

The new air foil bearings with double coating consisting of Teflon and graphite, has also been significantly improved. It proves this through an increased temperature resistance and lifetime of > 80,000 hours of operation independently from start and stop cycles.

Aerzen Turbo G5plus is offered for volume flows from 300 m³/h to 8,400 m³/h and for a maximum pressure of 1,000 mbar. Eight sizes from the small AT 25-0.8 G5plus to the largest model AT 200-1.0 G5plus are currently available, five more are in preparation.

Volume flow

 360 to 8,400 m3/h

Medium

Air

Experience

AERZEN has built turbo blowers since 1911. Over the years, we’ve continued to perfect these assemblies from a technological standpoint. Along the way, we have developed expertise that sets standards worldwide today. It’s reflected in the performance characteristics, in every component, and in all the details of the newest Turbos. Discover the new Turbo Generation 5 and Generation 5plus.
