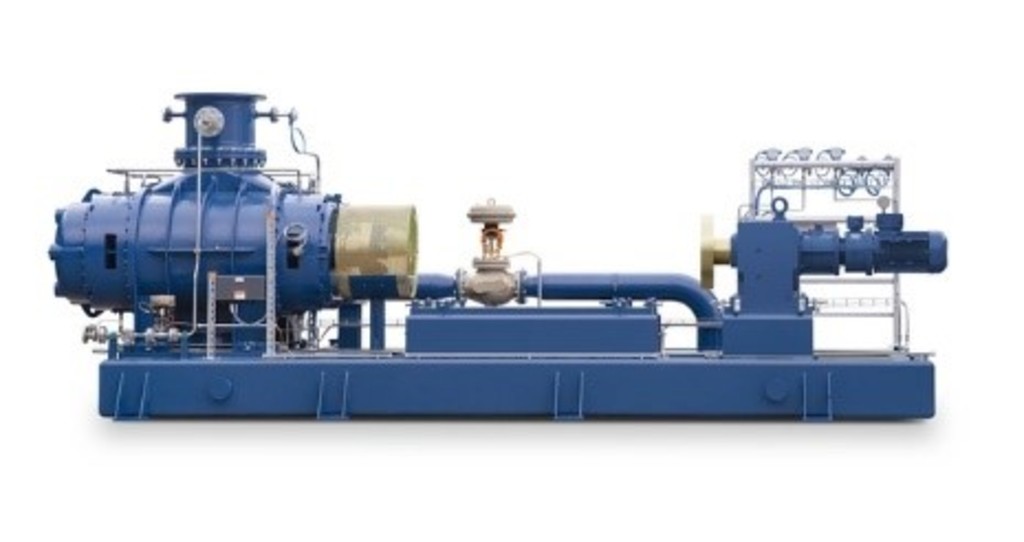

Process gas blowers series gr

Design

The conveying chamber sealed by

a) pressure relieved soft packings with purge gas connections,

b) pressure relieved carbon ring - labyrinth seals with purge gas connections,

c) double-acting mechanical seals, oil-purged

d) double-acting mechanical seals, water-purged

Drive shaft by radial seal ring.

Direction of flow

Vertical - from top to bottom.

Drive

Direct via flexible coupling or via flexibly coupled spur gear. Overhung via narrow v-belt (up to 250 kW driving power). Special materials: Depending on the operating conditions, models are also available in CrNi cast steel or with different coatings.

Medium

Air, Oxygen, Neutral, Toxic, Flammable, Explosive, Corrosive or Mixed Gases

Main Applications

• Compression of H2 and CH mixtures
• Acetylene
• Ethylenes
• Lime kiln gas
• Rich gas
• Synthesis raw gas
• Butadiene
• Vinyl chloride
• Hydrogen sulphide
• Hydrogen
• Hydrocracking
• Hydrosulphurisation
• Fractionating
• Reforming
• VOC recovery
• Natural gas compression
• Pipeline booster
• Underground gas storage
• VOC recovery
• Natural gas compression
• Pipeline booster
• Underground gas storage
• Helium
• Natural gas compression
• Waste steam
• Catalytic cracking
• PSA
• Flare gas
• Compression of H2 and CH mixtures Energy production
• Gas turbine supply
• Steam

Main Industries

• Chemical and Petrochemical Industries
• Refineries
• Oil & Gas Conveyance and Storage
• Industrial Gases
• Helium Refrigerator And Liquefier
• Offshore
• Breweries
• Pharmaceuticals & Coking Plants
