Print drying is just the ticket
25 January 2013

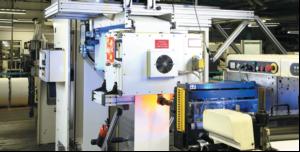

A carbon infrared (CIR) drying system from Heraeus Noblelight is being used with a Kodak Versamark high speed print unit for costeffective drying of a range of high quality tickets at the Hull factory of Bemrose Booth.

A carbon infrared (CIR)
drying system from Heraeus
Noblelight is being used with
a Kodak Versamark high
speed print unit for costeffective
drying of a range of
high quality tickets at the Hull
factory of Bemrose Booth.
The car parking tickets feature blocks of black ink to alert users that rolls are in need of imminent replacement.
These 'alert blocks' require large amounts of ink which need to be dried at speeds to match the printing.
The purpose-designed drying system consists of a 12.9kW carbon medium wave, infrared system providing highly efficient drying, as water absorbs infrared most strongly in the medium wave section of the spectrum.
An optical pyrometer measures the temperature of the web after it leaves the heating/drying module. As the line speed increases or slows, or if ambient conditions change, the system's infrared emitters are regulated to maintain a preset temperature.
The car parking tickets feature blocks of black ink to alert users that rolls are in need of imminent replacement.
These 'alert blocks' require large amounts of ink which need to be dried at speeds to match the printing.
The purpose-designed drying system consists of a 12.9kW carbon medium wave, infrared system providing highly efficient drying, as water absorbs infrared most strongly in the medium wave section of the spectrum.
An optical pyrometer measures the temperature of the web after it leaves the heating/drying module. As the line speed increases or slows, or if ambient conditions change, the system's infrared emitters are regulated to maintain a preset temperature.
