Fast and accurate
25 January 2013
In tabbing and stringing processes in many industries, such as electronics, automotive and solar production the narrow solder-coated copper ribbon used to link individual cells requires precise flux application to ensure

In tabbing and stringing processes in
many industries, such as electronics,
automotive and solar production the
narrow solder-coated copper ribbon
used to link individual cells requires
precise flux application to ensure a
good connection and prevent
discoloration. Piezoelectric
dispensing systems enable flux to be
applied at high speed with accuracy,
but without mess or safety issues.

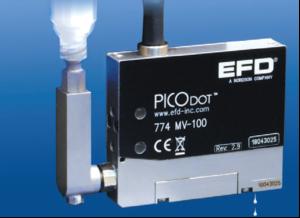

Nordson EFD's PICO piezoelectric
jet dispensing systems have two
piezoelectric actuators composed of
stacked ceramic coins that expand
and contract in response to changes
in voltage supplied from the valve
driver.When voltage is applied to the
actuators, the rod and sealing ball are
raised so pressurised fluid can flow
to the nozzle.When the voltage is
changed, the rod and sealing ball
descend rapidly to jet the fluid out of
the nozzle onto the substrate. Fluid
can be dispensed continuously at
speeds to 150 cycles/s. Depending on
fluid, the system can produce
consistent shots as small as 2nL. The
high resolution (0.01ms) of the valve
controller makes it possible to adjust
the size of the deposit with precision.
