Compact vision system

These ports support deterministic camera triggering over the Ethernet bus, so users can power the camera, send triggers and acquire images all from a single Ethernet cable.

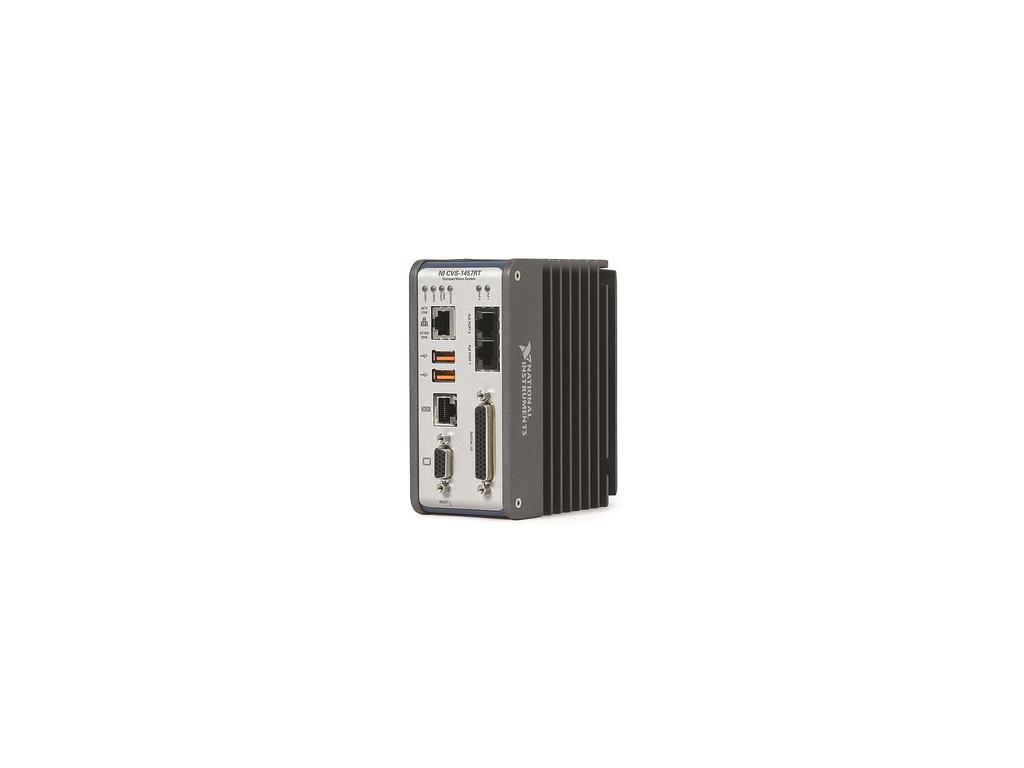

The NI CVS-1457RT also has FPGA-enabled I/O, which can be combined with the easy-to-use Vision RIO API to tightly synchronise vision inspection results with other parts of the system, such as encoders, ejectors and proximity sensors. The NI CVS-1457RT is programmed with either NI LabVIEW system design software or NI Vision Builder for Automated Inspection (AI).
