Compact and ultra-efficient
23 September 2014
The new ultra-compact KRYOSEC direct expansion refrigeration dryers recently introduced by HPC Compressed Air Systems offer the benefits of a dependable and highly efficient drying performance with minimal pressure differential, even when operating under the most challenging conditions.
.jpg)

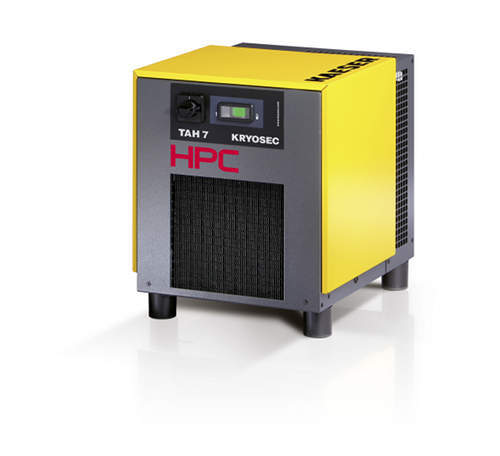

The footprint for the smallest TAH models is 0.18m² which have an overall size of just 386mm x 473mm x 440mm (WxDxH).
These compact, stand-alone and competitively priced dryers are designed to operate on compressed air flow rates from 0.35 to 4.5 m³/min (12.3 to 159 cfm) and in applications with ambient temperatures up to +50ºC.
Their impressive performance is made possible as a result of a generously dimensioned heat exchanger, optimised refrigerant liquefaction surfaces and dedicated cooling air flow. These features, combined with low-maintenance design, ensure highly efficient operation. All models comply with current machinery safety requirements (EN 60204-1) including a lockable on/off switch and integrated power supply isolating device.
Whilst not compromising on the quality of build, components or air quality, it is the reduction in height (and overall size) of the cabinet that makes the Kryosec dryers ideal for decentralised installations, allowing them to be wall-mounted or positioned in small spaces close to the point of use.
