Vehicle provider boosts lighting and cuts costs

Operating with a responsible commitment to the environment, MAN Truck & Bus UK is aiming to reduce its energy usage on a year-by-year basis. Other MAN sites fitted with Ecolighting luminaires are already benefiting from significant energy savings, reduced carbon emissions, improved lighting levels, an enhanced working environment and improved health and safety. Reduced maintenance costs are a further benefit.

The Westbury site had previously been excluded from the 2015 upgrade plan as MAN discussed renewing the building’s lease. Three years on, and the company remains at the site and contacted Ecolighting to update the lighting in the truck repair centre. The new luminaires will result in an annual saving of more than £5000 in energy, replacement lamps, climate change levy reductions, maintenance and carbon credits.

Tracy Lister, property manager at MAN Truck & Bus UK, comments: “We have worked with Ecolighting for about three years and they have installed low energy luminaires into most of our branches. Westbury is one of the latter sites being updated, but we are already finding massive energy saving benefits at the sites using Ecolighting products. The installations have also enabled savings under the Government CRC Scheme, whereby we purchase our carbon allowances. As we use less energy we burn less carbon, so again another large saving.”

She continues: “I would definitely recommend Ecolighting to others. They have always been very supportive of our needs and carried out all installations without any disruption to the business. Their after-sales support is excellent and they are very quick to respond/attend to any requests.”

Chosen for the installation at the Westbury site are the Pegasus, Sapphire, DampProof, Surface Circular and Panel LEDs as well as Floodlight LEDs and the Medusa LED streetlight.

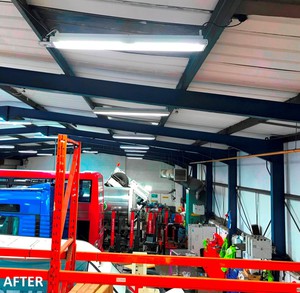

Used throughout the site’s workshop areas is Ecolighting’s compact Pegasus luminaire. Pegasus is a top specification LED High Bay luminaire and one of the company’s most popular light fittings. It is encased in a robust yet lightweight and stylish aluminium body.  Ecolighting says Pegasus uses an Osram driver and Osram LEDs giving 166 lumens per watt and up to 80% energy saving in installations. The sealed dustproof construction prevents access from insects and makes for easy cleaning. The Pegasus High Bay luminaire can be used for a wide range of applications – from industrial, warehouses, cold stores and manufacturing to sports halls and retail stores.

For the Westbury site’s stores, workshop walls and lockers, Ecolighting’s Sapphire luminaire was chosen. It features high output chip-on-board LEDs and OSRAM driver encased in a linear body with a polycarbonate diffuser, all rated IP54. The 1500mm length luminaire comes in power ratings of 40, 50, 60 and 80W, with up to 9600 lumens, a colour temperature of 4000K and colour rendering of RA80. With lamp life of 50,000 hours, the Sapphire comes with a five-year warranty.

The company’s reception, canteen, washroom and pits required a damp proof luminaire. The DampProof LED is a uniform light with a wide beam angle that is said to ensure energy savings of up to 50%. With an efficacy of 115 lumens per watt, the DampProof LED has a luminous flux of up to 6400 lm and is available with a colour temperature of 4000K or 6500K. With IP65 protection, a beam angle of 180° and available in 21, 30, 39 and 55W, the luminaires also have a lifespan of up to 50,000 hours.

All of the Westbury site’s office areas are fitted with indoor LED ceiling panel luminaires. These are suitable for use as a direct replacement for luminaires with 4 x 18W or 4 x14W fluorescent lamps and for lighting conference rooms, reception areas, foyers and recessed ceiling systems with grid size of 600 x 600mm. The Panel LED is said to ensure energy savings of up to 50% compared to conventional luminaires and is designed with a very slim aluminium housing and matt white frame. Its external driver for extended flexibility is quick to install and comes with a five-year guarantee. The Panel’s luminaire efficacy is up to 110 lumens per watt, comes with a luminous flux of up to 4000 lm, and is available with colour temperature of 3000, 4000 and 6500K.

For the outside yard areas at MAN, Truck & Bus UK, LED floodlights and the Medusa amenity lights were selected. Suitable as a replacement for floodlights with halogen lamps, the LED Floodlight is suited to applications in garages, public areas, building facades and construction areas. With energy savings of up to 90% compared to halogen lamp floodlights, the frosted tempered glass cover for uniform illumination offers IP65 protection and a luminaire efficacy of up to 110 lumens per watt. The 135W LED Floodlight comes with a mounting bracket for up to 180° tilting and is available with a colour temperature of 4000K and a luminous flux of 15000 lm.

Suitable for use in streets, security, car parks and building exteriors, the Medusa luminaire provides cost savings. By using top quality LEDs in Medusa, Ecolighting ensures high thermal conductivity, minimal light decay, pure light, stable performance and a 50,000-hour lifespan. As a result, Ecolighting is able to offer a 10-year conditional guarantee with optional photocell control and a pre-programmed dimming cycle for smaller projects.

Ecolighting has its own team of lighting and electrical installation engineers and carries out the lighting scheme design with Relux software in the early stages of client lighting projects. The company manufactures its luminaires in the UK and uses UK-sourced Osram control gear and LED chips. The company is a Carbon Trust Accredited Supplier, assessed to BSEN ISO 9001:2015 and a member of the Lighting Industry Association.
