LED lighting delivering savings

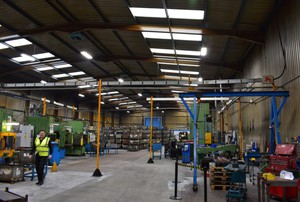

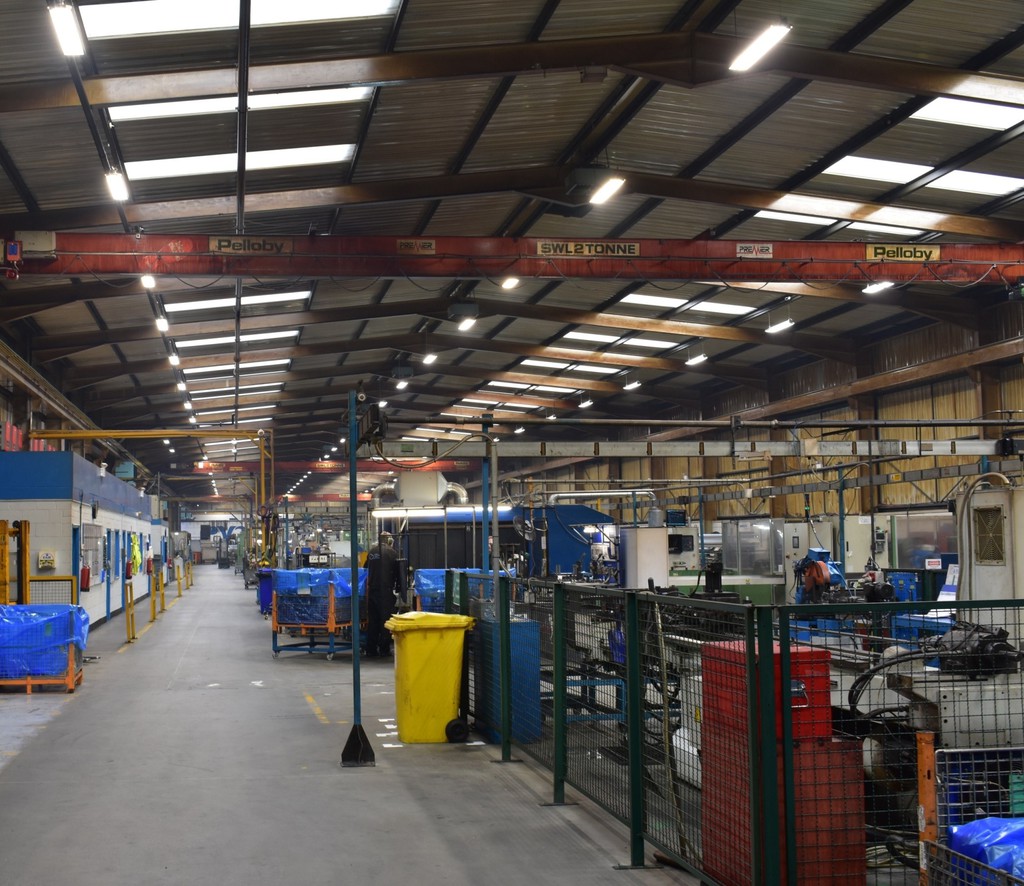

The workshop and production areas have been fitted with Ecolighting’s Pegasus LED lighting, and have replaced the incorrect and underperforming LED luminaires that were in place. Following a successful previous project in Voestalpine’s rear warehouse facility, Ecolighting installed 113 high bay fittings with its LED technology.

Voestalpine Rotec, based in Hinckley, offers complete tubular solutions to the automotive industry, with products ranging from simple bush tubes to complex assembled parts. Its extensive knowledge of tube processing and manipulation allows the team to support customers from the design and development stage of a project through to high volume production, utilising the latest technology and manufacturing methods.

Simon Corbett, financial director at Voestalpine comments: “As part of some general improvements to the warehouse we decided to switch to LED lighting to reduce our running costs. We chose to work with Ecolighting as they are local to us and have already done a great job in our rear warehouse. We found they were the best solution for our requirements and with their new LED luminaires we are now getting improved light levels at a lower energy usage. We are very pleased with the results.”

Ecolighting’s Pegasus uses an Osram driver and Osram LEDs giving 166 lumens per watt and up to 80% energy saving in installations. At Voestalpine, this will also result in an annual saving of more than £4000 in replacement lamps, climate change levy reductions, maintenance and carbon credits.

The compact Pegasus luminaire which is 1220mm long x 182mm wide and 92mm deep comes in no less than 22 different LED power outputs from 70 to 280W. Three LED versions of Pegasus, 170, 190 and 240W DALI dimmable and PIR luminaires were chosen for Voestalpine’s warehouse facility.

All have a colour temperature of 4000K, a colour rendering of RA80 and have an efficiency of 166 lumens per watt. The large number of LED power outputs means that the Pegasus luminaires can be tuned to any high bay application and further versatility is offered in the options of 15, 30, 40 and 120° beam angles. Pegasus can also be specified with a programmable photocell and PIR to control lighting according to people in the building, or DALI dimmable which allows programmable integrated daylight harvesting with occupancy sensors for the greatest energy savings.

By using Osram LEDs in Pegasus, Ecolighting says it ensures high thermal conductivity, minimal light decay, pure light, very stable performance and a 50,000h lifespan. Ecolighting is able to offer an eight-year guarantee for the luminaire and a five-year warranty for the sensor.
