Test stand system
25 January 2013

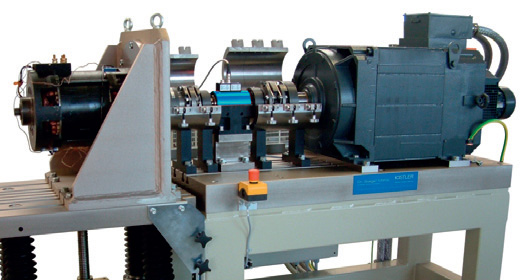

Kistler has launched a modular test stand system designed for testing electric motors and gearing. The stands can incorporate a wide range of torque and speed sensors with manual or computer control, and can be equipped
Kistler has launched a modular test
stand system designed for testing
electric motors and gearing. The
stands can incorporate a wide range
of torque and speed sensors with
manual or computer control, and can
be equipped with an integrated power
analyser with up to 12 voltage and 12
current measurement channels to
provide separate efficiency specifi -
cation for the motor and converter.
The load on the motor under test is provided by an active brake working in four quadrants. Sensors to measure torque from 0.01 to 25,000Nm, power from 2W to 500kW and speed up to 120,000rpm may be combined with a wide range of mechanical components, power analyser for data logging, signal conditioning and data interface.
The load on the motor under test is provided by an active brake working in four quadrants. Sensors to measure torque from 0.01 to 25,000Nm, power from 2W to 500kW and speed up to 120,000rpm may be combined with a wide range of mechanical components, power analyser for data logging, signal conditioning and data interface.
