High speed torque sensor

05 August 2013

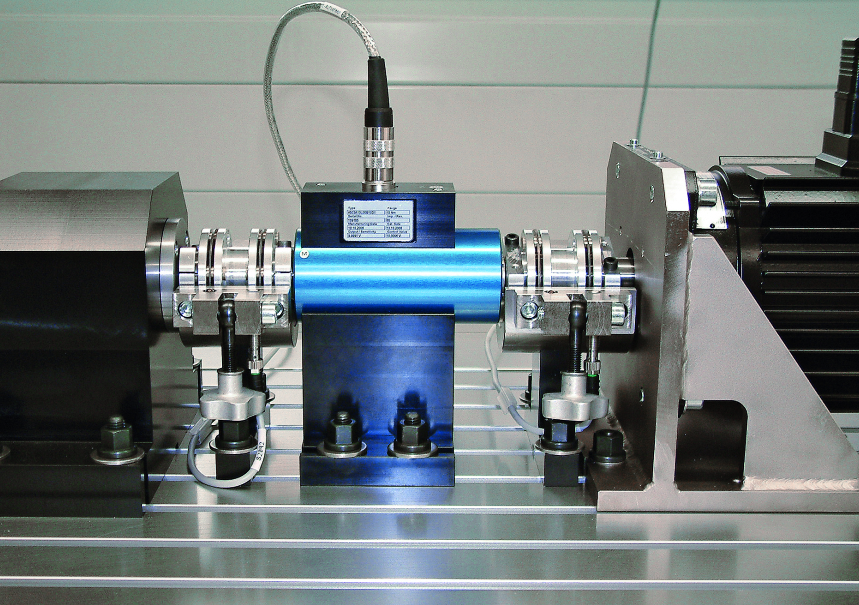

Kistler's new Type 4503A torque sensor provides a flexible instrument for use at rotational speeds of up to 50,000 rpm with a choice of 14 measuring ranges from 0.2 to 5,000Nm.

Features include two, switchable ranges, with the second range being either 1:10 or 1:5 of the rated torque, integral digital signal conditioning providing both analogue and digital outputs, contactless signal and power transmission and a speed sensor output of up to 360 pulses per revolution.


The option of two, switchable ranges allows precise measurement of both peak and operating torque with the same sensor.


The contactless power and signal transmission between the rotating shaft and the stator, combined with precision manufacturing and high grade shaft balancing, ensure that the sensors maintain calibration over a long life.
