Durable datalink connector

The Max-M12 withstands connector to cable retention forces of 444N and contact retention forces of 110N, tested at 100 mating cycles minimum.

Suitable for use in heavy equipment, rail mass transit, mining, and process control as well as in applications that require high speed data transmission, the Max-M12 can withstand extremely harsh environments and electrical noise. This field installable and repairable connector is a standalone system that does not need to be overmolded to a cable to meet the harsh environments; however it can be if needed.

The Max-M12 is backward compatible and can be mated with any standard M12 with the same indexing. Designed to endure high vibration and extreme temperatures ranging from -55 to 125°C, the connector maintains a current rating of 4A.  All versions are IP67 or above.

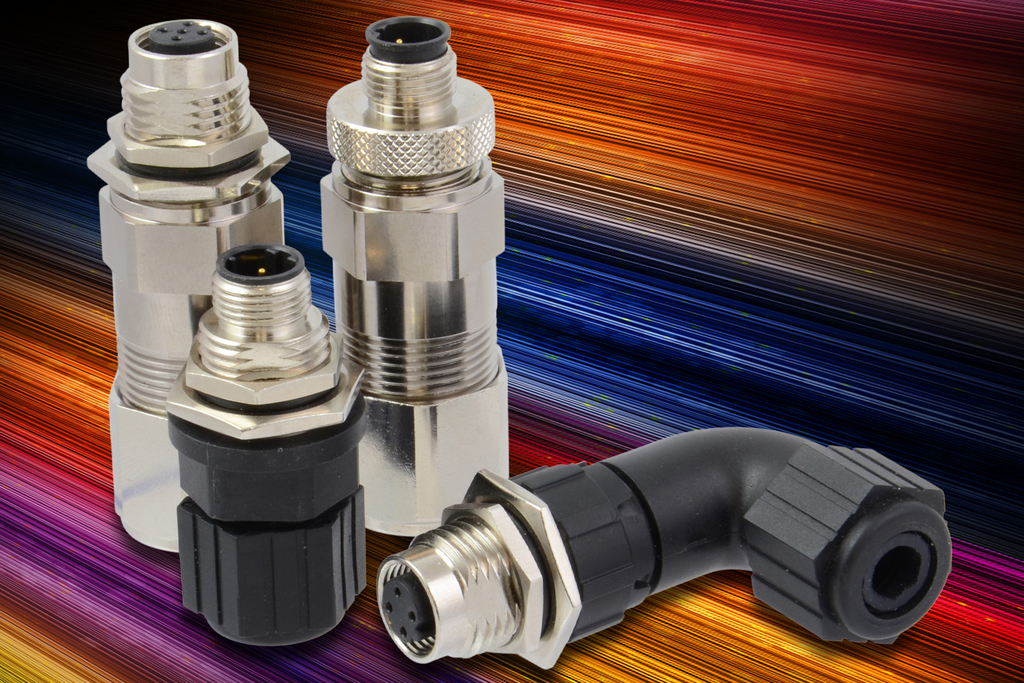

The Max-M12 is housed in an HDM 12 EX impact resistant metal or plastic shell and both are available as a 90° right angle connector or straight version.  The metal version is required for shielding.  Both the 4- and 5-pin configurations are available with A, B, D and P polarity codes in line with IEC 61076-2-101 specifications.  Additional indexes are available upon request.

The connector can be terminated using solder terminals with 0.8 mm² (18 AWG) or 0.5 mm² (20 AWG) wires as defined by SAE J1128 and 0.75 mm² or 0.50 mm² conductors as defined by ISO 6722. The dielectric withstanding of the Max-M12 is 1,000 V.

The Max-M12’s electrical insulation provides a resistance of over 20 mega ohms, while providing a high temperature life of 1000 hours at 125°C.
