Primary circuit power connector
16 October 2015

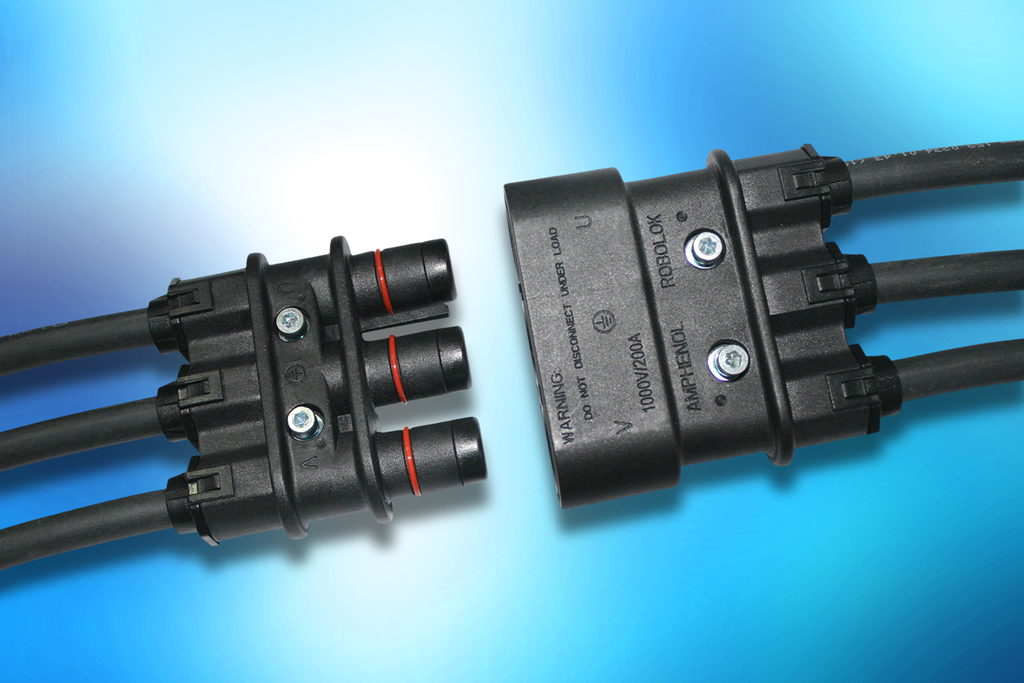

Amphenol Industrial Products Group has introduced RoboLok, a three position, high current, primary circuit power connector. Featuring three fixed, proprietary RADSOK contacts on each connector, it gives a wide range of cable contact configurations.
Suitable for use by industrial robotic manufacturers, RoboLok uses RADSOK contacts to deliver optimum operating temperature rise and a current capacity up to 200A continuous on a 50 mm² wire.
RoboLok’s design enables quick disconnects and easy tool-less assembly and maintenance. The cost-effective connector can be used in industrial robots, tool changer systems, automated assembly lines, and a variety of other industrial applications. The RoboLok connector features a 2+PE configuration with FMLB that is safe to operate during hot-plugging whilst also offering a lightweight, compact, composite modular design.
RoboLok offers a voltage rating of 1,000 VAC/DC, It’s IP67-rated and has an operating temperature range of -40°C to +100°C. It is able to withstand a minimum of 500 mating cycles.
