Infrared sensors
18 February 2014

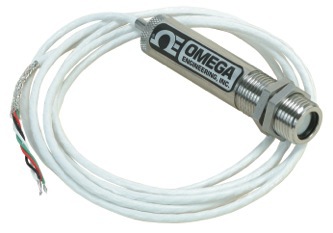

Omega has introduced a new OS136 Series of miniature, low-cost, high performance infrared sensor/transmitter that features a 19mm O.D. by 89mm long stainless steel IP65 housing.

This mini transmitter is suitable for applications that require measuring temperature in hard-to-reach, confined or harsh environment areas.
The OS136 Series comes with a 1.8m shielded cable for power and output connections. Models feature industry standard outputs that provide easy interfacing directly to all meters, controllers, dataloggers, recorders, computer boards and PLCs. The fixed emissivity of 0.95 allows for quick and easy measurements requiring no adjustment during installation and use. Two temperature ranges are available: OS136-1: -18 to 202°C and OS136-2: 149 to 538°C.
