Precision torque tester

A choice of intelligent torque cells allows measurement from 6 N.m down to just a few mN.m. Concentricity at extreme low torques is ensured by the facility to align specific fixtures with the selected torque cell.

Mecmesin’s Emperor control and acquisition software enables the building of sophisticated test programs and complex results analysis. These features are said to ensure a high degree of accuracy and repeatability.

The Helixa can be used where rotation of components is very precise, or very light, measuring a range of critical torque features, the precise operation of dosage control dials as in injector pens, the 360° smoothness of controls, or the quality assurance of mass-produced medical Luer slip and lock fittings.

Where axial forces count, the Helixa has additional key features. A counterbalancing mechanism can be used to remove axial forces due to the torque cell and fixturing, and if required, a top-load platen can then be used to apply a specific static axial force.

Applications for which the Helixa has been designed include:

Luer fittings (slip and lock)

Dosage-dial drug delivery devices (e.g. insulin pens)

Light and miniature torsion springs

Electronics rotary controls and components

Fine and high-performance bearings

Child-resistant closures (CRCs)

John Page, MD of Mecmesin, states: "With the release of the Helixa, Mecmesin now has the ability more effectively to address low torque applications (below 6 N.m) where the accuracy and repeatability of results is crucial. The counterbalanced crosshead means that the frictional effect on the sample from the mass of the transducer head during testing is significantly reduced.”

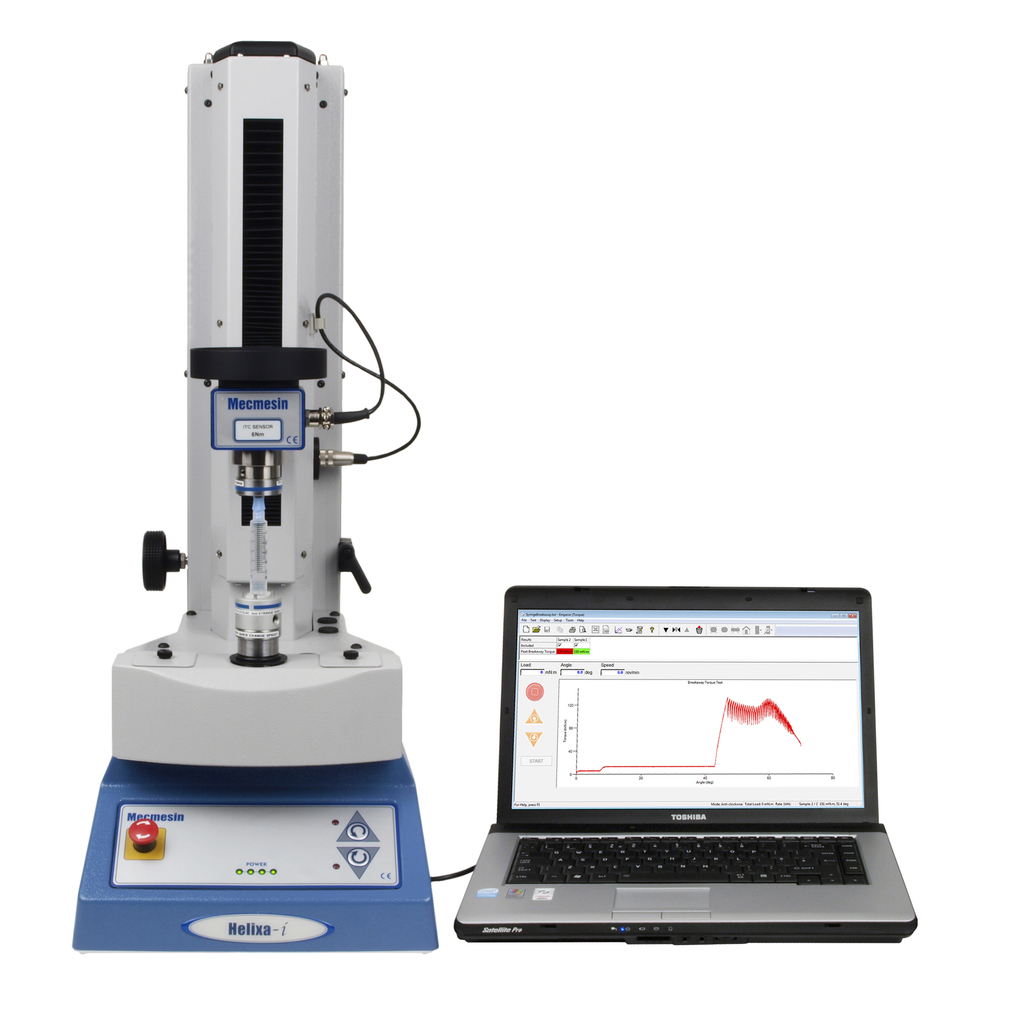

The Helixa is available as a PC-controlled version (the Helixa-i), driven by Mecmesin’s powerful Emperor software, or as a stand-alone version (the Helixa-xt) controlled from an integral touch-screen console.

Complementing the Helixa is a range of torque testing accessories, including a precision fixing plate for securing even the lightest samples and bellows for dust protection. Mecmesin has a team of experienced application engineers to design bespoke fixturing, often required for precision testing at this level.
