Temperature sensor
27 August 2014

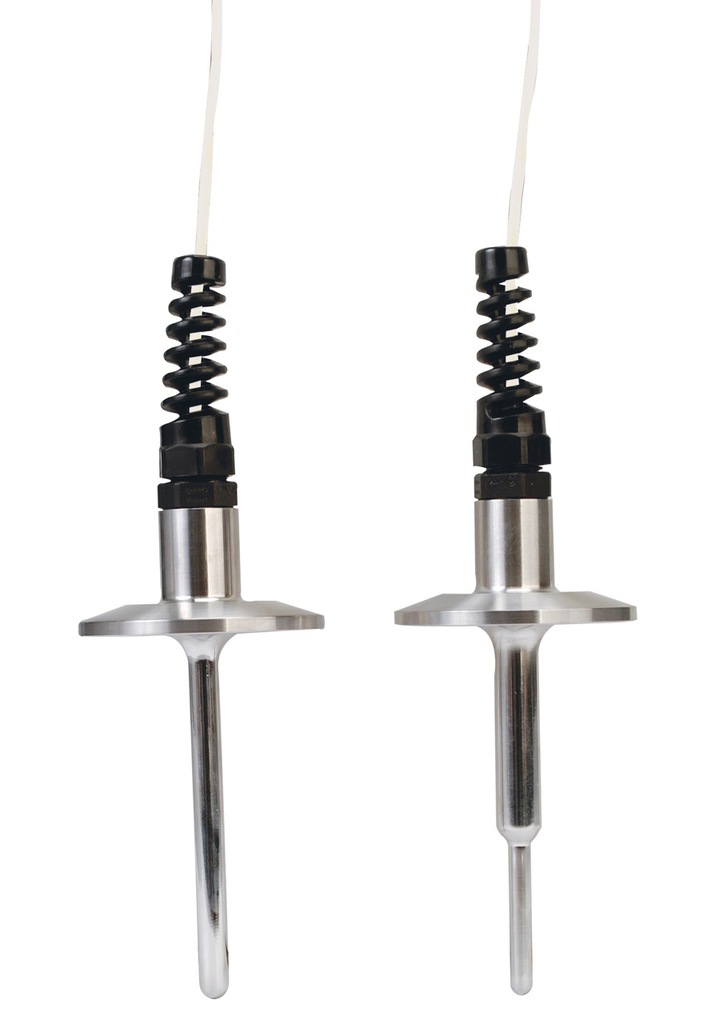

The Omega PRS-3-100-CB is a temperature sensor that contains a PT100 Platinum RTD element and is designed for use in food, dairy, beverage and bio pharmaceutical clean-in-place (CIP) type applications.
The sensor includes a 1½ 16A process connection that conforms to ASME BPE-2007 for easy installation using industry-standard gaskets and clamps.
Standard duty sensors are available with ¼ diameter probes, and heavy duty sensors are available with a stepped 3/8 to 3/16in diameter probe. The sensor is provided with a 120in long, 4-conductor, #26 AWG stranded nickel plated copper PFA insulated and jacketed cable with a strain relief for convenient connection to control or monitor equipment.
