Keeping safety simple

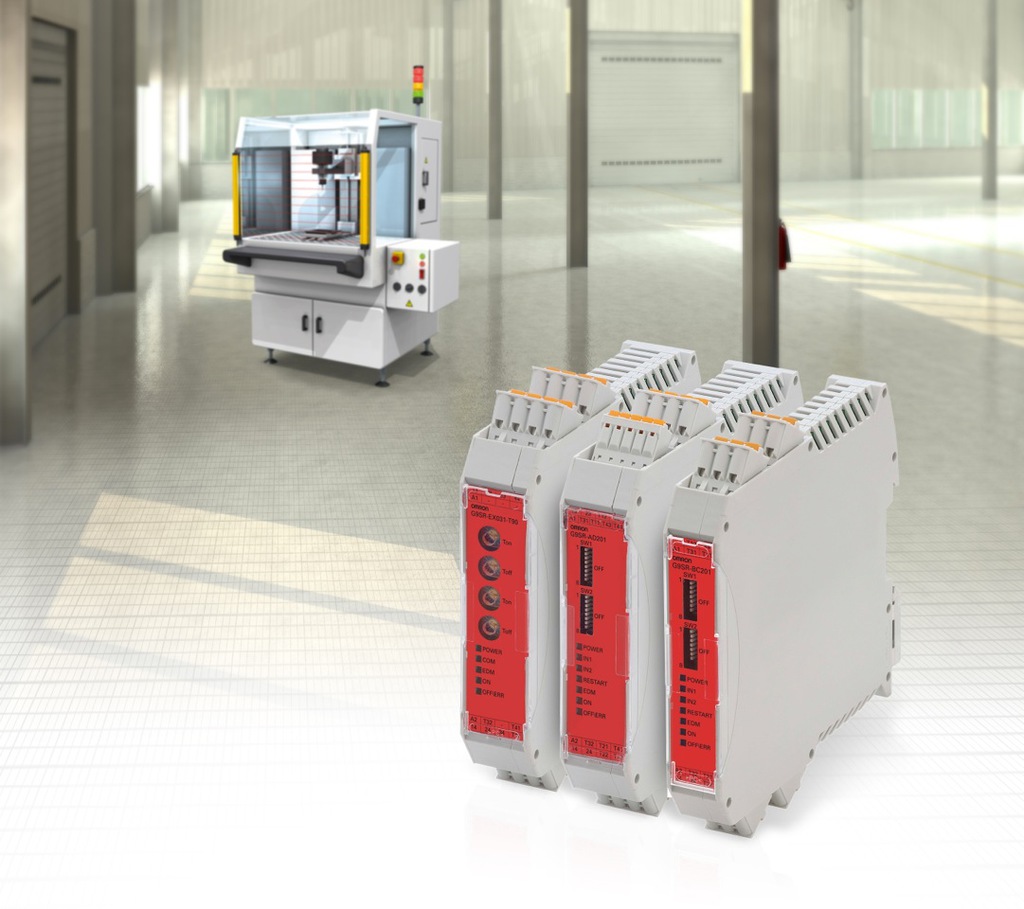

Key characteristics include; certification to category PLe in line with EN/ISO 13849-1, fast response time to ensure minimum stopping times, optional solid-state outputs for long-life wear-free operation, compact housings to save space in control panels and removable spring-type terminals to ensure rapid straightforward installation. All units are equipped with an additional monitoring output to provide diagnostic information for use by the standard control system.

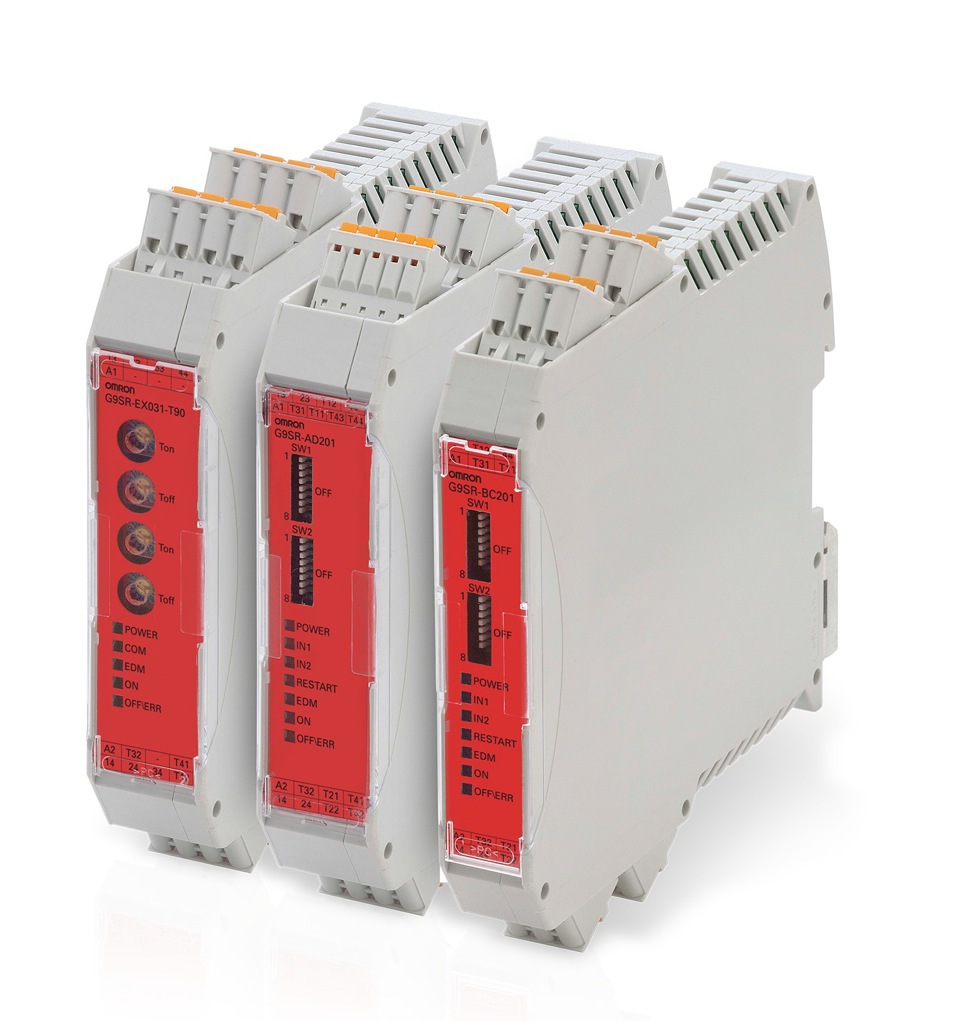

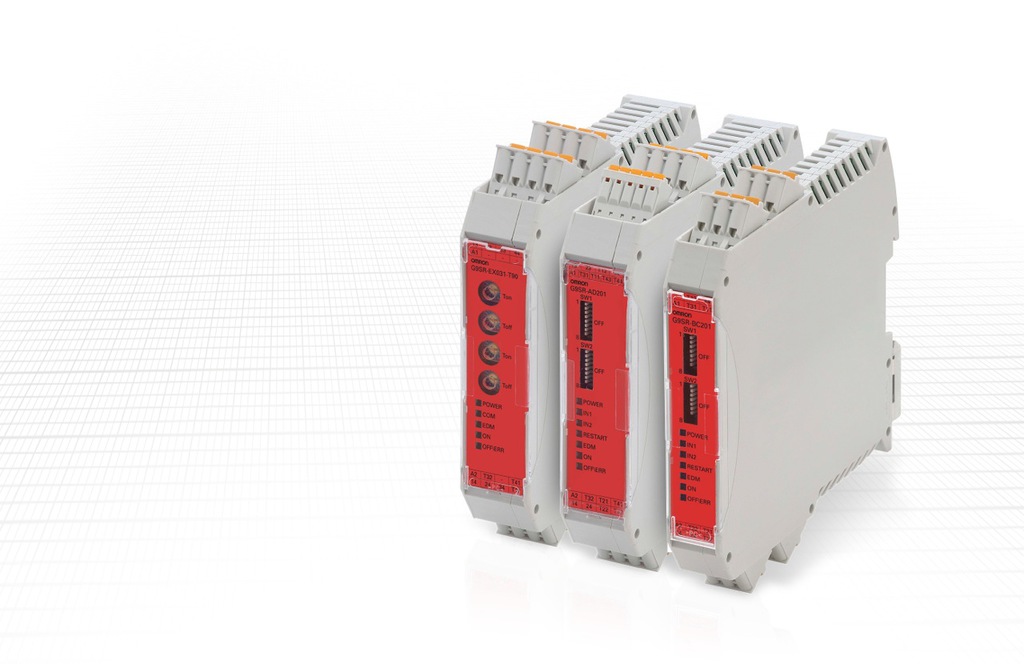

The basic unit in the G9SR family is just 17.5mm wide and has single- or double-channel safety inputs, plus double-channel solid-state safety outputs. The outputs are rated at 2A, which makes them suitable for direct switching of even large contactors.

Complementing the basic unit is a more advanced unit, which is 22.5mm wide and has single- or double-channel safety inputs plus double-channel safety relay outputs rated at 5A. For applications where input expansion is needed, each advanced unit can control up to two G9SR basic units that are configured as additional safety inputs to the same safety function.

The extension unit in the G9SR family is 22.5mm wide, has three safety relay outputs rated at 5A. These outputs can be configured for instantaneous operation or to provide independent safe on- and off-delay timers that can be set in 16 steps to give a maximum delay of 90 seconds. Up to three G9SR output expansion units can be connected to an advanced unit to provide one instantaneous safety output on the advanced module, plus three time-controlled safety outputs on the extension units.
