Modular all-in-one ITS package for global use

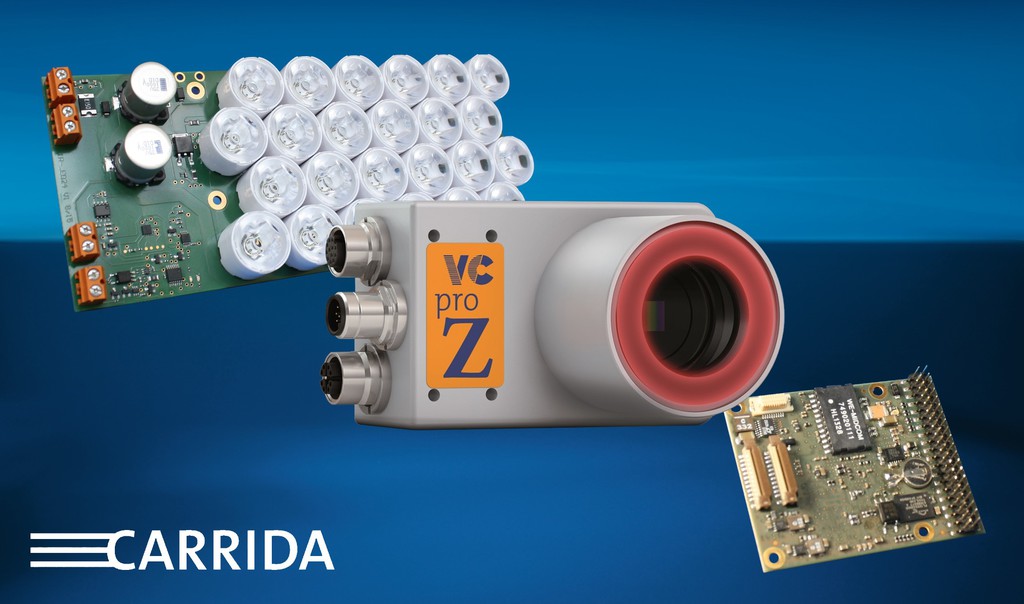

The package comprises the Carrida Software Engine, Carrida Cam, VC Flash infrared area lighting module, and Q-Board, which turns IP cameras into smart cameras. The solution is suitable for applications such as access control, speed control, traffic analysis, and fleet management. Individual products can be combined or integrated into existing systems based on customer requirements.

With a typical processing time of 30ms and a reading accuracy greater than 96%, the Carrida software engine is a fast, accurate ALPR/ANPR library (Automatic License Plate Reader or Automatic Number Plate Reader) that reliably detects even dirty, damaged, or slanted license plates in countries around the world.

Carrida Cam combines the advantages of this software package with the outdoor ruggedness and compactness of the 88 x 58 x 36 mm sized VC pro Z smart camera. Due to its low power consumption (less than 3W), this camera can act as a standalone system, powered for instance with solar cells. The Q-Board PCB presents users with a cost-effective way to convert existing systems into automated systems.

Based on a dual-core ARM Zynq processor clocked at 2 x 866 MHz, Q-Board can be connected to any IP camera, turning it into an intelligent ITS system with video streaming by using the Carrida engine. With a form factor of 40 x 50mm, this board requires very little installation space. For optimum brightness, even in changing or unfavourable light conditions, VC Flash facilitates powerful infrared area lighting. Equipped with 24 high-power LEDS as well as its own power source, this lighting module is specially designed for road applications. It comes with an integrated lighting controller.

The ITS package is complemented by Carrida Parking Management, a fully automated OEM solution that allows quick and simple integration in existing barrier systems and infrastructures and is fully functional as a standalone system.
