Bifold circuit designer
13 June 2018

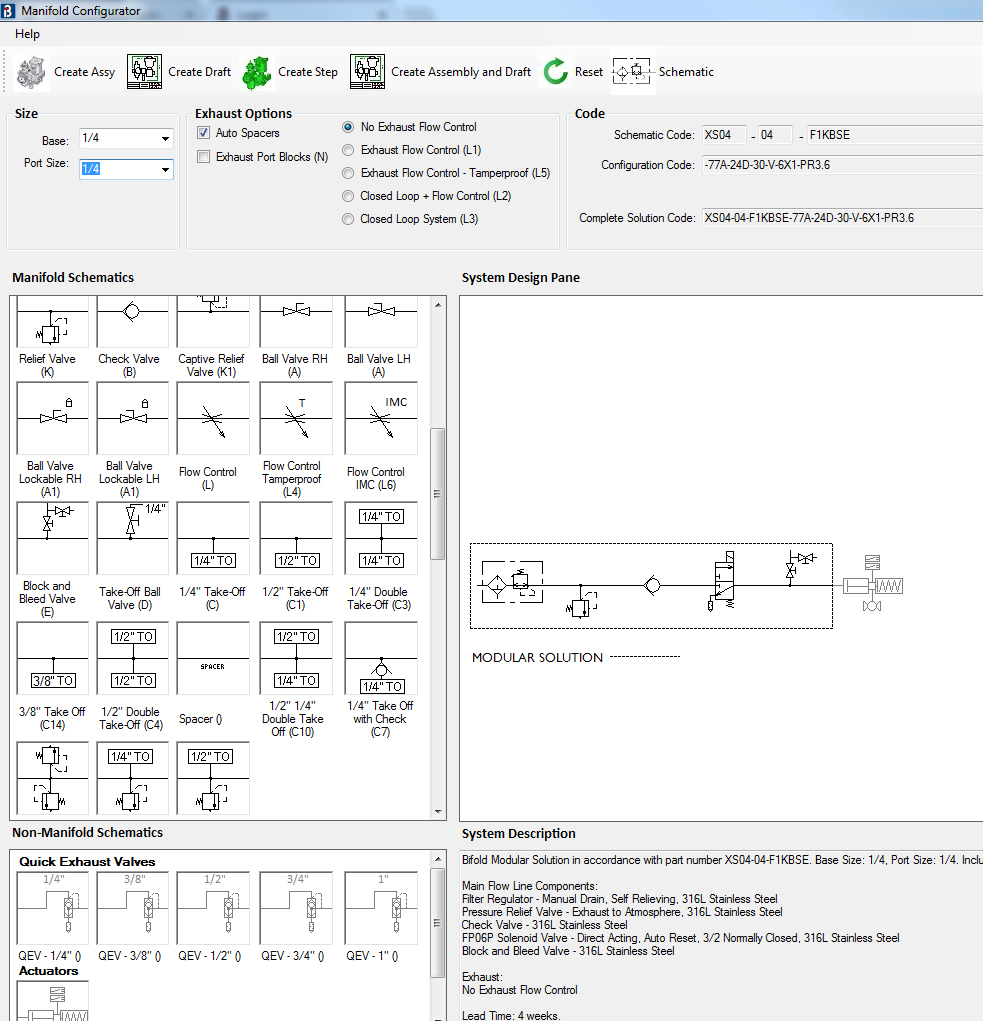

The Bifold Circuit Designer from Bifold Fluidpower allows users to design a bespoke modular solution or tubed valve circuit comprising a series of valves in any order or orientation, where applicable, using a schematic drag and drop system. The completed system can then be bought as a modular solution or as a list of separate valves.
Users can: design a circuit using drag and drop; organise and manage projects in the Project Centre; view the modular solution code and description or a list of separate valves and fittings; create a PDF schematic diagram and description for sending with a quote and view and print the Modular Solution Bill of Materials (BOM) or separate valves (BOM).

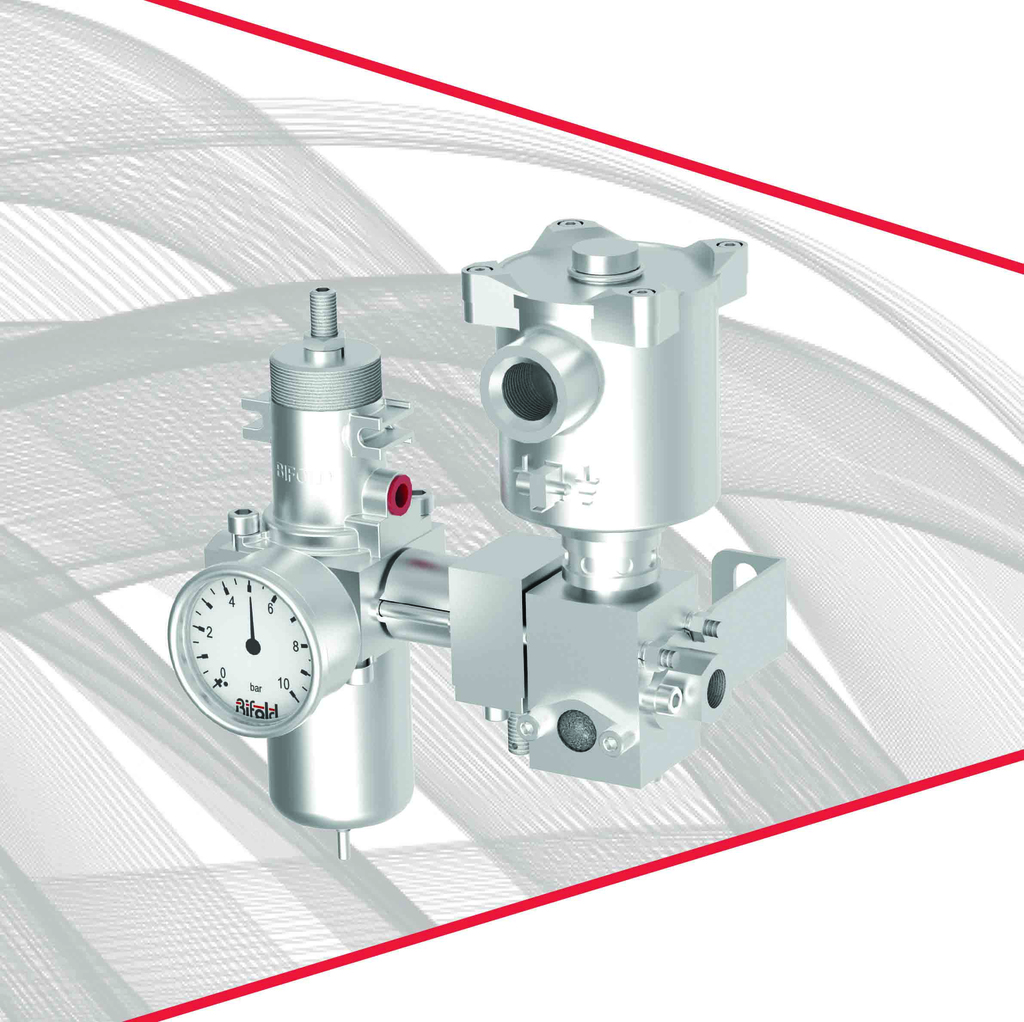

For users with Solid Edge ST6 and above, it is also possible to create a 3D model and dimensional drawing for a Modular Solution.
