New modular chiller range
25 January 2013

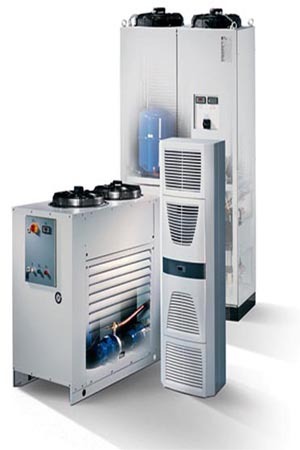

Said to be breaking the mould of typical industrial chillers the new Top Therm modular units from Rittal are integrated into a standard Rittal TS 8 enclosure system that can be stand alone or part of a suite of panels...

Said to be breaking the mould of typical industrial chillers the new Top Therm modular units from Rittal are integrated into a standard Rittal TS 8 enclosure system that can be stand alone or part of a suite of panels. Three modules, namely the hydraulic, cooling and electrical modules make up the system and the air intake can be changed depending on the application. A vertical arrangement means that space saving on site can be significant.
With seven performance categories from 8kW to 40kW cooling capacity, the modular design concept uses identical components throughout the range. Added benefits include shorter delivery times with pre-configured standard modules; reduced cost due to standardised modular components and fast service due to less complexity.
Standard items are a water bypass for optimum reliability, a flow meter and a dual frequency design suitable for international projects. The complete range is covered in 4 enclosure sizes made up of a combination of only 2 enclosures. (WHD approx.)
1.) 800 x 2000 x 800
2.) 1,200 x 2,000 x 800
3.) 1,600 x 2,000 x 800 = 2 x enclosure 1
4.) 2,400 x 2,000 x 800 = 2 x enclosure 2
With seven performance categories from 8kW to 40kW cooling capacity, the modular design concept uses identical components throughout the range. Added benefits include shorter delivery times with pre-configured standard modules; reduced cost due to standardised modular components and fast service due to less complexity.
Standard items are a water bypass for optimum reliability, a flow meter and a dual frequency design suitable for international projects. The complete range is covered in 4 enclosure sizes made up of a combination of only 2 enclosures. (WHD approx.)
1.) 800 x 2000 x 800
2.) 1,200 x 2,000 x 800
3.) 1,600 x 2,000 x 800 = 2 x enclosure 1
4.) 2,400 x 2,000 x 800 = 2 x enclosure 2
