X-Y monitoring system

The new X-Y monitoring system from Kistler for manufacturing, process monitoring and product testing offers high performance, flexibility and a colour touchscreen user interface for a starting price of around £1200.

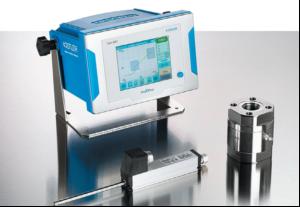

Available in panel mount and worktop versions, the maXYmo BL can evaluate a production step or product test on the basis of a curve of up to 8000 pairs of X-Y values derived from piezoelectric or strain gauge sensors on the Y-channel, and potentiometer sensors on the Xchannel.

The system monitors the process by the relationship between the X-Y curve and the evaluation objects that have been set by entering numerical values or by dragging and dropping on the touch screen user interface.
