Torque measuring flange

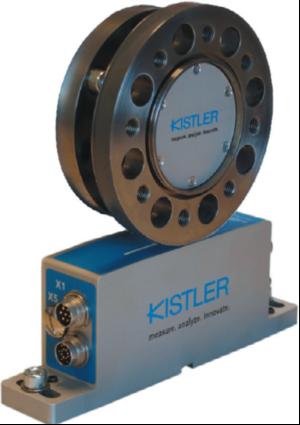

The new Kistler KiTorq torque measuring flange system operates without an antenna ring and has standard flange geometry conforming to ISO7646 for easy installation. The open stator design is said to allow faster installation, to reduce the risk of damage, and to allow easier visual inspection during testing.

The universal intelligent stator may be used with any KiTorq rotor of the same speed rating for greater operational flexibility. A choice of 500, 1000, 2000 or 3000Nm measuring ranges is available, each with an accuracy class of 0.05% of range. The system has an excellent torque signal bandwidth of up to 10kHz and a 60 pulses per revolution speed output.

A single, intelligent stator can be used with any KiTorq rotor of the same speed rating and will automatically recognise the rotor measuring range. This minimises hardware investment as one stator may be used with rotors of differing ranges for different applications.
