New air dryers
25 January 2013
A CDA (Clean Dry Air) range by Hi- Line Industries, provides air that has been filtered and dehumidified to remove both particulates and moisture for safe use in pneumatic devices or systems. A range of 15 models offe

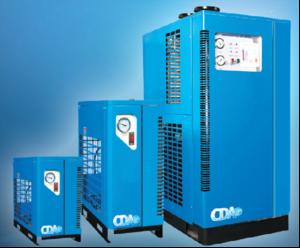

A CDA (Clean Dry Air) range by Hi-
Line Industries, provides air that has
been filtered and dehumidified to
remove both particulates and
moisture for safe use in pneumatic
devices or systems.
A range of 15 models offering flow rates from 21 to 775 cfm are available ex-stock, with larger dryers up to 9680 cfm capacity.
The dewpoint is displayed directly from the refrigerant circuit via a manometer which indicates both dewpoint and pressure as real time readings. Operating pressures from 2 to 16 barg can be accommodated, with a maximum inlet air temperature of 55°C. The standard ambient temperature range is 0° to 43°C with a 47°C option available.
Approved R134a or R404a refrigerants are used, with the exstock dryers operating off a 230v single phase 50-60Hz power supply.
Connections range from 1/2in BSP up to an 8in flanged outlet over the range. These dryers are fitted with HTD autodrains with a ball valve strainer for protection.
A range of 15 models offering flow rates from 21 to 775 cfm are available ex-stock, with larger dryers up to 9680 cfm capacity.
The dewpoint is displayed directly from the refrigerant circuit via a manometer which indicates both dewpoint and pressure as real time readings. Operating pressures from 2 to 16 barg can be accommodated, with a maximum inlet air temperature of 55°C. The standard ambient temperature range is 0° to 43°C with a 47°C option available.
Approved R134a or R404a refrigerants are used, with the exstock dryers operating off a 230v single phase 50-60Hz power supply.
Connections range from 1/2in BSP up to an 8in flanged outlet over the range. These dryers are fitted with HTD autodrains with a ball valve strainer for protection.
