Cable entry systems

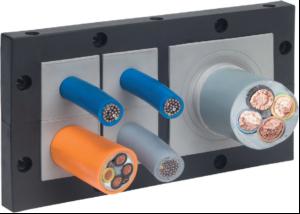

The versatile icotek cable entry system available from M Buttkereit has been extended to include the new KEL 183 series. This product features a split black polyamide frame assembly for ease of initial cable assemblies, as well as simple accommodation of additional cabling and general retro fitting applications.

The overall frame size is 202 x 120mm. It can be equipped with grey coloured elastomer inserts to provide IP54 cable sealing and can accommodate cables and tubes up to 75mm diameter in a variety of cable sizes and grouping combinations.

Standard frame plus insert assemblies can be provided to cover maximum size cable arrangements of 2 cables up to 75mm diameter, or one cable of 75mm and four of 34mm diameter, and a third arrangement of eight cables of 34mm diameter. In all cases, cables of lesser diameters can be accommodated, together with cables incorporating pre-assembled terminations.

The ease of achieving both frame and cable run installations at bulkhead junctions, together with the time saving achieved, makes these products suitable for a wide range of general engineering and commercial applications. This covers control panels up to full machine building projects as well as transportation equipment involving trams, trains and marine projects.
