Multi-cable entry plates seal to IP66

Round cable entry plates have been added to the icotek range of cable and wiring accessories which can be fitted in both standard cut-outs or metric versions covering thread sizes from M32 - M63. These versatile products provide IP66 sealing, together with cable strain relief and are said to be a cost effective alternative to traditional cable glands.

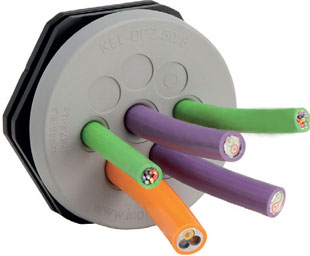

KEL-DPZ round cable entry plates from M Buttkereit are suitable for a range of applications where speed of installation, combined with savings on space and materials are priority. There are 10 plates in the range, each offering multi-cable entry facilities, for a cable range from 3.2 to 22.2mm outside diameter. Plates can provide high packing densities of up to 35 cables/plate, for wiring sizes from 3.2 to 6.5 O/D. Others in the range cover varying combinations of cable quantities (4 to 19) and diameters. Cable entry plates range from 44 to 75mm diameter. Hexagon locknuts provide positive clamping and IP66 sealing at the point of assembly in the bulkhead entry aperture.

Cabling can be completed within seconds. Individual cables only need to be pushed through the appropriate sized grommet which is preformed in the elastomer sealing plate.
