S-type geometry
17 April 2013

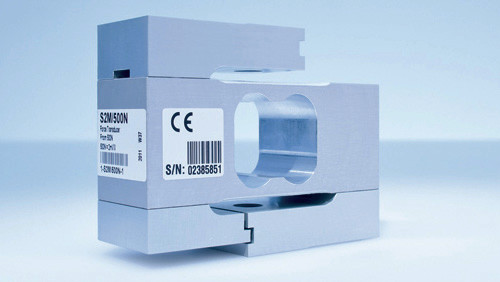

HBM has developed the S2M force transducer to provide high-precision measurement of compressive and tensile forces in conjunction with strain gauges. The transducer features S-type geometry that achieves extremely accurate results while ensuring that measurement errors resulting from the application of nonaxial forces remain low.

HBM has developed the S2M force
transducer to provide high-precision
measurement of compressive and
tensile forces in conjunction with
strain gauges. The transducer features
S-type geometry that achieves
extremely accurate results while
ensuring that measurement errors
resulting from the application of nonaxial
forces remain low.
An accuracy class 0.02 has been achieved setting a new standard for this class of force transducers.
Temperature differences also have hardly any effect on the measurement results. The S2M is available with maximum capacities ranging from 10N to 1kN. Strain gauges installed on the measuring body are made of aluminim and hermetically sealed with plastic potting to ensure IP67 protection.
An accuracy class 0.02 has been achieved setting a new standard for this class of force transducers.
Temperature differences also have hardly any effect on the measurement results. The S2M is available with maximum capacities ranging from 10N to 1kN. Strain gauges installed on the measuring body are made of aluminim and hermetically sealed with plastic potting to ensure IP67 protection.
