pH/ORP electrodes

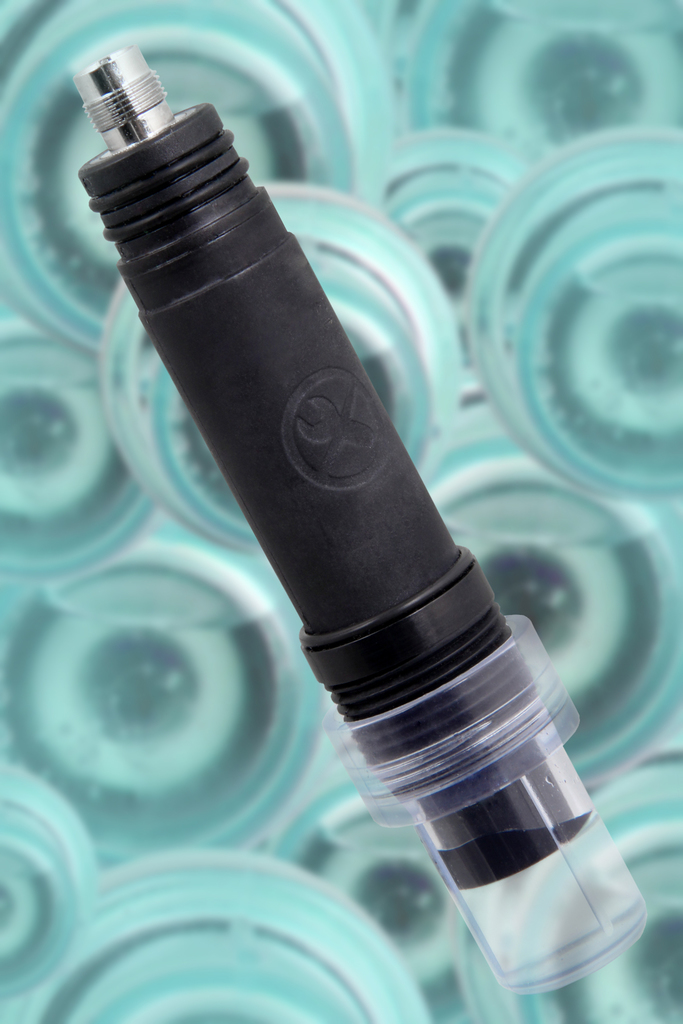

These make it possible to integrate the S8000 platform and its modular capabilities into a standard ¾in flow-through ‘Tee.’ Applications include water/wastewater monitoring, chemical storage, food and beverage production, PCB etching, boiler control, and other process environments where accurate pH and ORP monitoring is essential.

Sensorex’s flat surface sensor technology delivers accurate measurement over a range of 0-14pH or -1999 to 1999mV for ORP. With a temperature range up to 100°C and pressure rating of 0-100 psig, the S8075CD is suitable for both challenging and light duty applications.

With Sensorex’s S8000 series modular pH and ORP platform, users save time and money by configuring a custom system that can grow and change with process needs. Starting with a choice of a pH or ORP (Redox) electrode, users continue customising with the choice of mounting hardware for in-line or submersion applications. The mounting hardware selection allows for optional automatic temperature compensation (ATC) as well as a stainless steel pin to address ground loop interrupt. The platform includes a variety of electronics options including unity gain pre-amplifiers and blind 4 – 20mA transmitters. If monitoring needs change, users simply update the applicable module without replacing the whole system and only need to stock one sensor for a range of installation considerations.
