Sanitary temperature sensor
08 September 2014

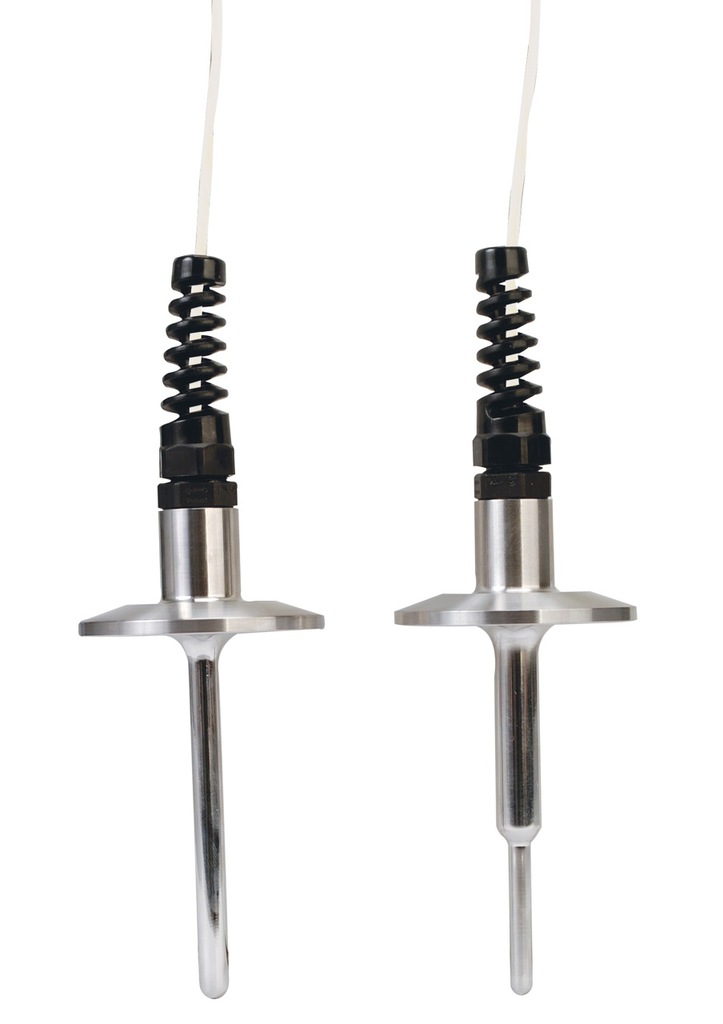

The new Omega PRS-3-100-CB sanitary temperature sensor contains a PT100 Platinum RTD element and is designed for use in food, dairy, beverage and bio pharmaceutical clean-in-place (CIP) type applications.

The sensor includes a 1 ½ 16 amp process connection that conforms to ASME BPE-2007 for easy installation using industry standard gaskets and clamps. Standard duty sensors are available with ¼ diameter probes,and heavy duty sensors are available with a stepped 3/8 to 3/16in diameter probe.
The sensor is provided with a 120in long , 4-conductor, #26 AWG stranded nickel plated copper PFA insulated and jacketed cable with a strain relief for convenient connection to control or monitor equipment.
