High vibration brush terminal series

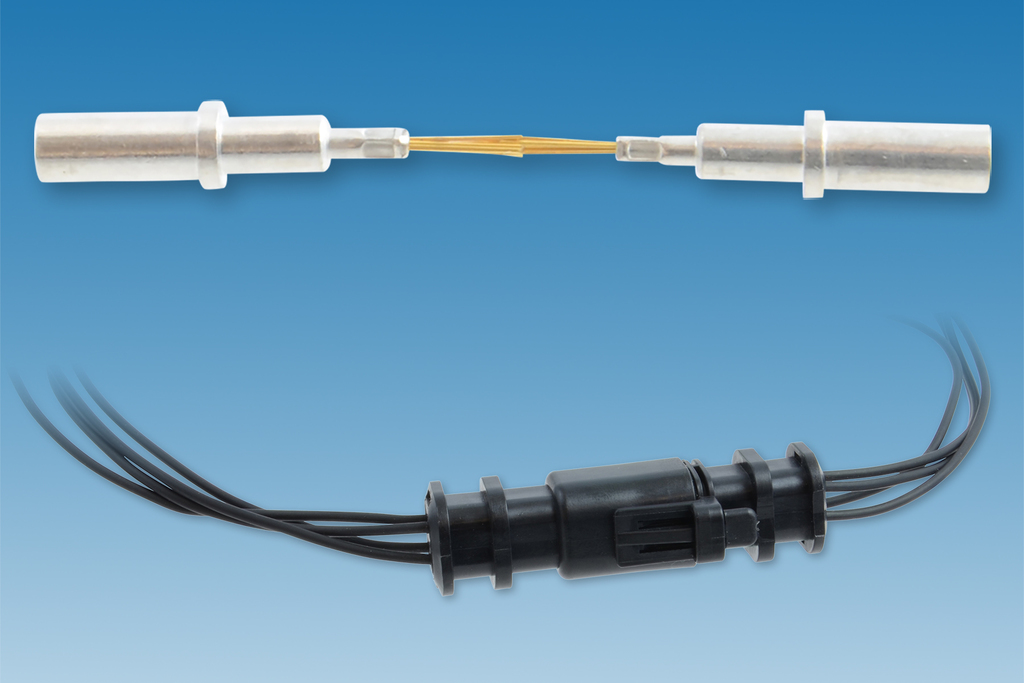

The brush-like terminal technology is made up from multiple strands of high tensile strength wire bundled together on each side of the contact which is hooded for protection. These compact size 22 signal terminals can accommodate up to 16 gage cable or a PCB tail and are rated up to 5A continuous.

Amphenol's high vibration brush (AHVB) is designed to withstand vibrations of at least 53.8grms at 8h per axis and 2000 Hz. It is an innovation that can be used for all signal applications, including in-lines, sensors, fuel systems, and control modules. It is suitable for on-engine applications and fixed positions where high vibration fret resistance and environmental performance is critical to function.

Suitable for use in the heavy equipment, mining, medical and mass transit markets, the AHVB terminal series exhibits zero fretting and can handle up to 100,000 mating cycles. It has low insertion forces (70% up to 90% lower than traditional connectors), resulting in smaller footprint, higher I/O counts and less maintenance with levers and screws. The AHVB connection systems are rated IP67 when mated and are designed to pass SAE J2030 validation.

Technical Specifications

• Withstand up to 100,000 mating cycles
• No fretting
• 14 to 70 points of contact when mated
• Can accommodate up to size 16 gage cable
• Size 22 signal contacts
• Rated to 5A continuous
• Withstand vibrations of at least 53.8 grms
• Low insertion force is 1oz typical
• Withstand temperatures to 150°C
• Interface seals impervious to chemicals/caustic fluids
• Rated IP67 when mated
• In compliance with SAE J2030
