Digital pulse and frequency module

10 November 2015

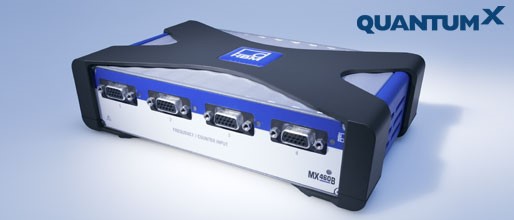

Available from HBM is the new MX460B four channel digital pulse and frequency module, which is part of HBM's QuantumX measuring amplifier system.


The MX460B is said to offer a high degree of flexibility, excellent measurement performance and ease of use. It features four channels which can all be individually configured and used to measure torque, rotational speed, angle position and displacement.

Suitable for test bench applications used in the development of electric drives, combustion engines or hybrid drives or, in general, in machines with rotating shafts, the new module enables changes in measurement values with a maximum bandwidth of 40kHz to be easily analysed in the high accuracy class of up to 0.01.

The module also resolves digital frequency signals for torque and rotational speed by interpolating and extrapolating at data rates of 100kS/s per measurement channel, ensuring a loss-free digital measuring chain.

Also available from HBM is a wide range of data acquisition modules for special measurement tasks such as MK403B, MX1601B, MX1609 and MX1615B. These modules enable a wide range of different measurement quantities to be acquired reliably and simultaneously using one single device.

The QuantumX data acquisition system (DAQ) from HBM is a universal new-generation data acquisition system which enables reliable data acquisition of signals from different measurement quantities and sensor technologies.
