Seal flushing

There are many methods deployed for implementing ‘seal flush’, but in most cases fluid is either re-circulated from other points on the pump (usually the output) or from an external source for the flushing stream. In most cases, an increase in pressure, and or flow control may be required and small gear pumps are often used for this purpose.

Micropump gear pumps, available in the UK from Michael Smith Engineers, are magnetically driven and well suited to these applications as they provide a well-controlled, smooth flow. They also feature wetted material options including 316 SS, PEEK, PPS, Viton and Kalrez which ensure outstanding chemical capability and withstand the temperature ranges typically associated with mechanical seal flush applications

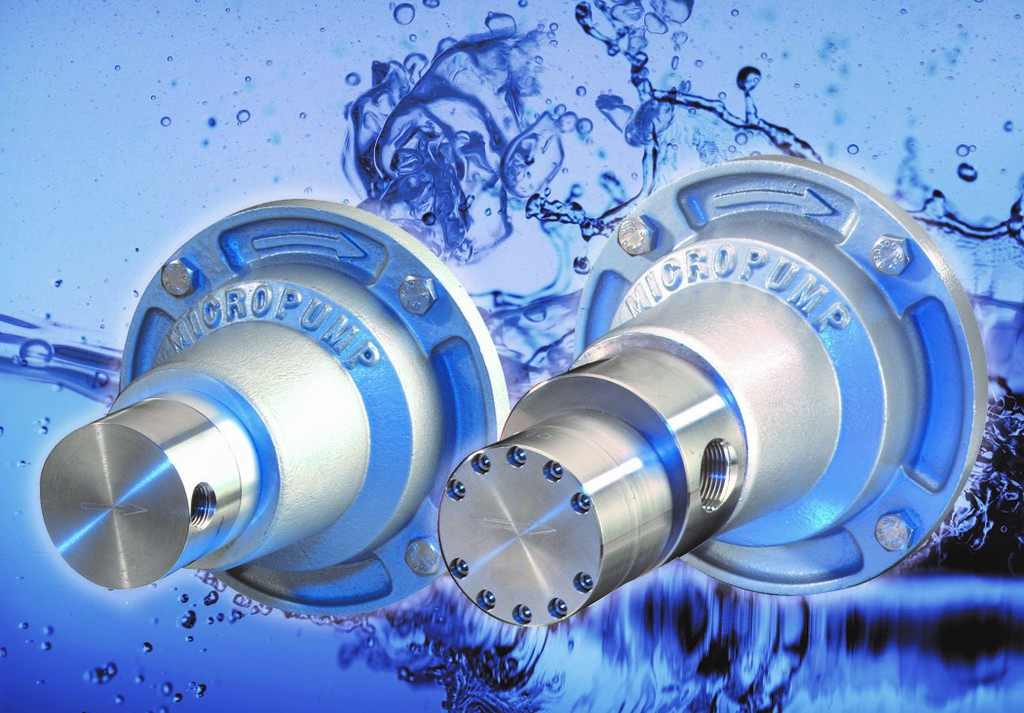

The models commonly used for seal flush applications are the Micropump Series GC which is a suction shoe style gear pump design which allows the pump to self-compensate for wear. They provide flow rates from 0.405 to 13.9 lit/min and are able to maintain high volumetric efficiency, even at higher pressures (max differential pressure up to 8.6 Bar and maximum system pressures up to 103 Bar). Also, thanks to reducing the number of components to an absolute minimum, the suction shoe design minimises downtime and simplifies servicing.

The Micropump Series GL can also be used for flushing and provides the option of higher flow rates when required, for example 2.3 to 26.6 lit/min at maximum differential pressures of up to 8.6 bar and maximum system pressures to 103 bar.
