Latest data logger: More memory and easy handling
02 May 2017

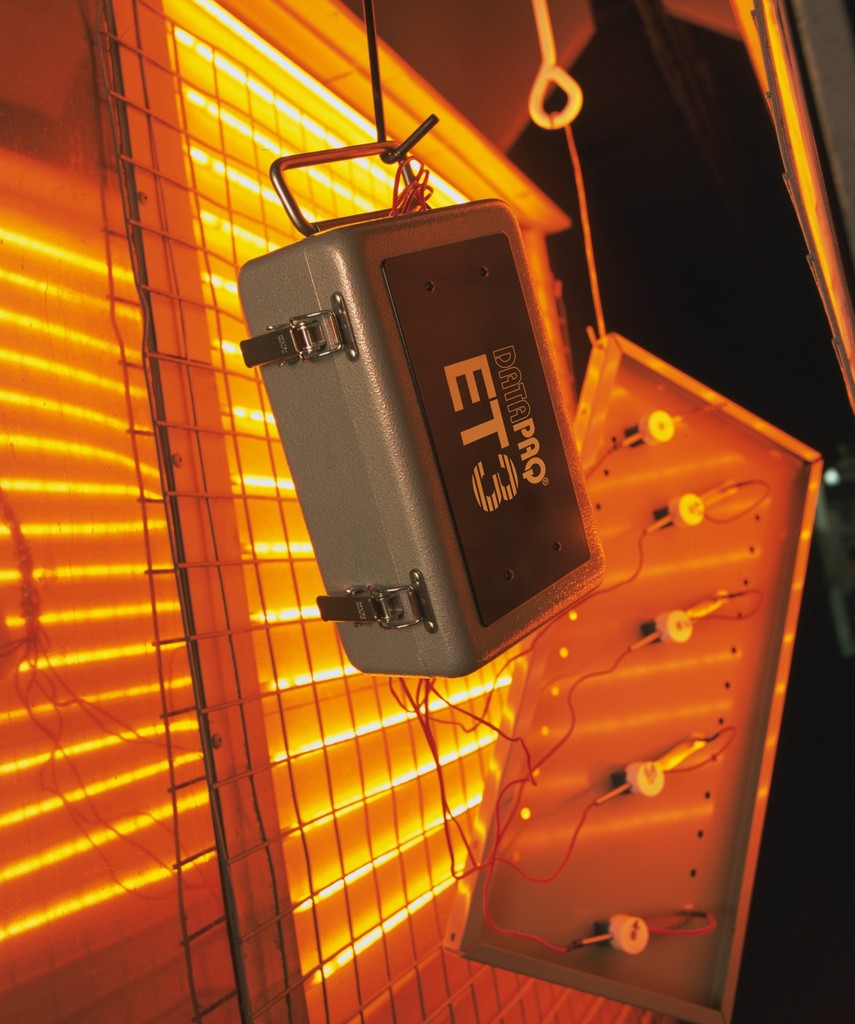

The newest generation DATAPAQ EasyTrack3 system is designed to make profiling the oven cure of painted and powder-coated products even easier.

Fluke Process Instruments has equipped the data logger with a rugged and light polycarbonate casing that withstands harsh treatment and heat to 100°C without distortion and without harm to the electronics. Versions with four or six thermocouple channels are available. Data is stored in a non-volatile memory – the capacity has been tripled to 18,000 readings per channel.
The loggers use replaceable 9V batteries. An intelligent power management ensures a long battery life for 50+ profiling runs. Calibration certificates stored aboard the logger can be printed anytime. When the logger is connected to a PC (via USB), the software now starts automatically. Reviewing and analysing the data, users can dynamically change the language. Logger diagnostics is much facilitated by a quick reference guide and animated tutorials. For remote diagnostics, status data can be emailed to the manufacturer’s tech support.
Fluke Process Instruments supplies a versatile range of profiling systems with probes and thermal barriers to suit a variety of applications. The new pro version logger carries out up to three consecutive profiling runs before data download to a PC. It features a traffic light indicator that instantly shows whether process criteria have been met. The DATAPAQ EasyTrack Insight Professional software includes advanced analysis functions such as rise/fall, peak difference, area under curve calculation, marking of up to six oven zones in the temperature graph, a probe map for high repeatability, saved zooms for even more comfortable reviewing and sharing of data, and customized profile reports. Email: [email protected]
