Programmable coolant system

07 September 2017

Floyd Automatic Tooling now offers the new VARIO-Jet automatic coolant nozzle from Hirt Line. Retro-fitted and freely programmable, the coolant nozzle features automatic data exchange via the tool offset of the machine.

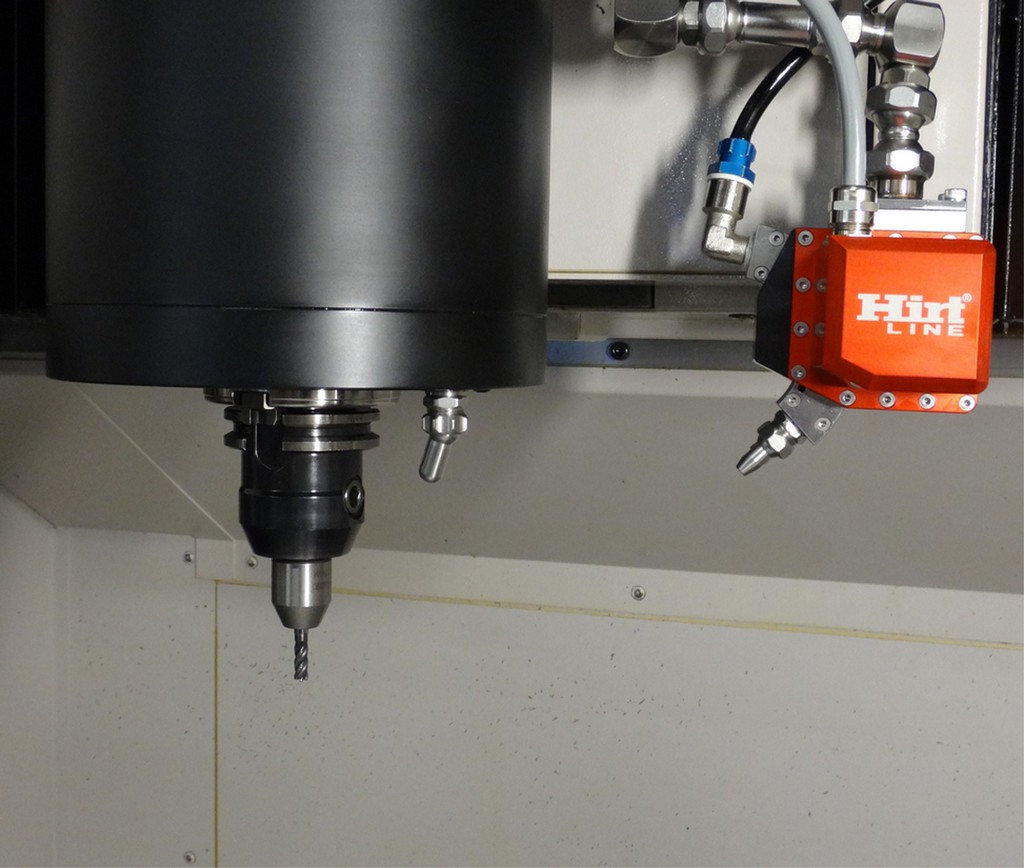

To enhance tool life, machining performance, surface finishes and even prolong the life of the fluid, the VARIO-Jet guarantees that coolant is always directed at the cutting area. The VARIO-Jet can be retro-fitted to any machine tool with a tool offset. As standard, the VARIO-Jet is available with 20bar pressure and an optional system is offered with 80bar.

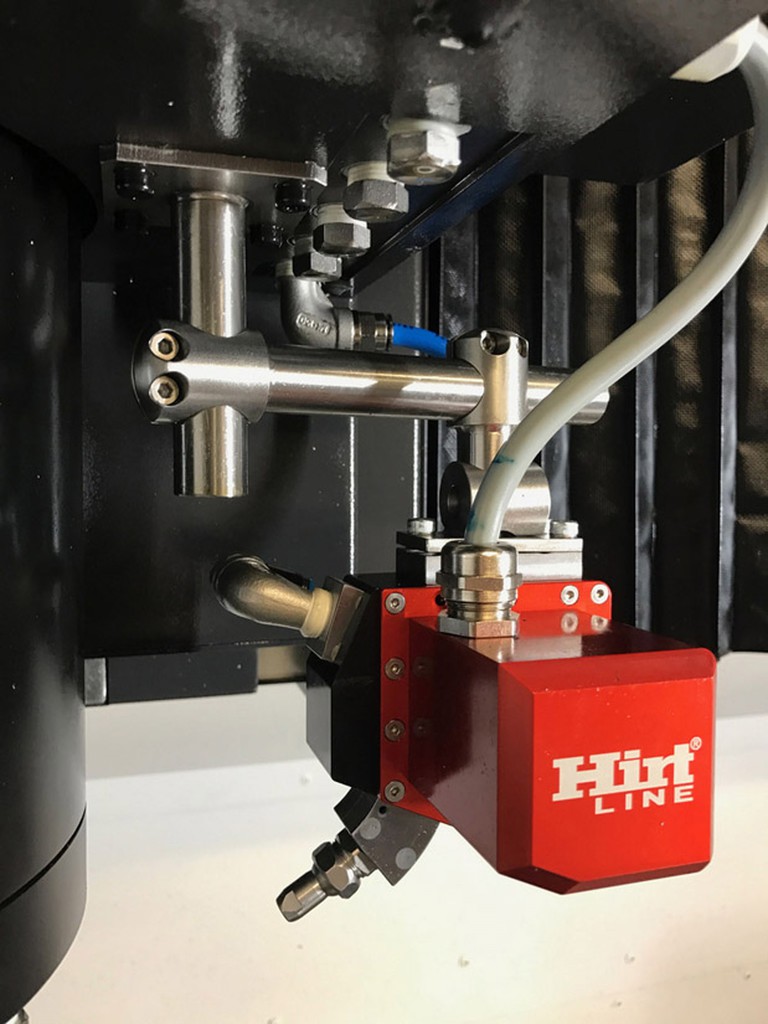

The VARIO-Jet has a data exchange system that operates via the tool offset RS232 or through a similar interface on the CNC control. With a brushless DC motor and encoder, the VARIO-Jet is a maintenance-free system that is available with a complete line of replaceable flat or circular coolant nozzles. The nozzles can rotate at up to 35°, so coolant is optimally delivered to the cutting edge of tools of all lengths and diameters.

Only requiring a ‘one-time’ input of the parameters to complete the setup operation, the VARIO-Jet can also be activated via Wi-Fi through a web browser or App that is compatible with smart-phones, tablets, laptops or PCs. The connection thread for the coolant is programmable through G1 codes and the Wi-Fi has a WPA2 encryption system for added security. Connected to the machine tool with a 230V AC power supply, the energy efficient system has a power consumption of just 50W.

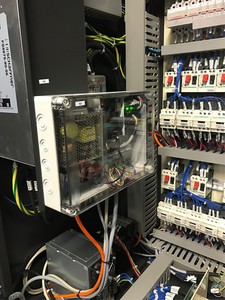

The easily retro-fitted system includes an 85 by 70mm by 100mm unit that can be fitted anywhere in the machine envelope. With the central unit is a VARIO-Jet nozzle with a 3.2mm diameter outlet, a special stainless steel holder, an IP65 rated control cabinet, a 2m hose set with up to 20bar pressure, a pre-assembled 15m long data cable, a 3m long 230V connection cable and an installation and operation manual.
