Portable inverter package
09 December 2017

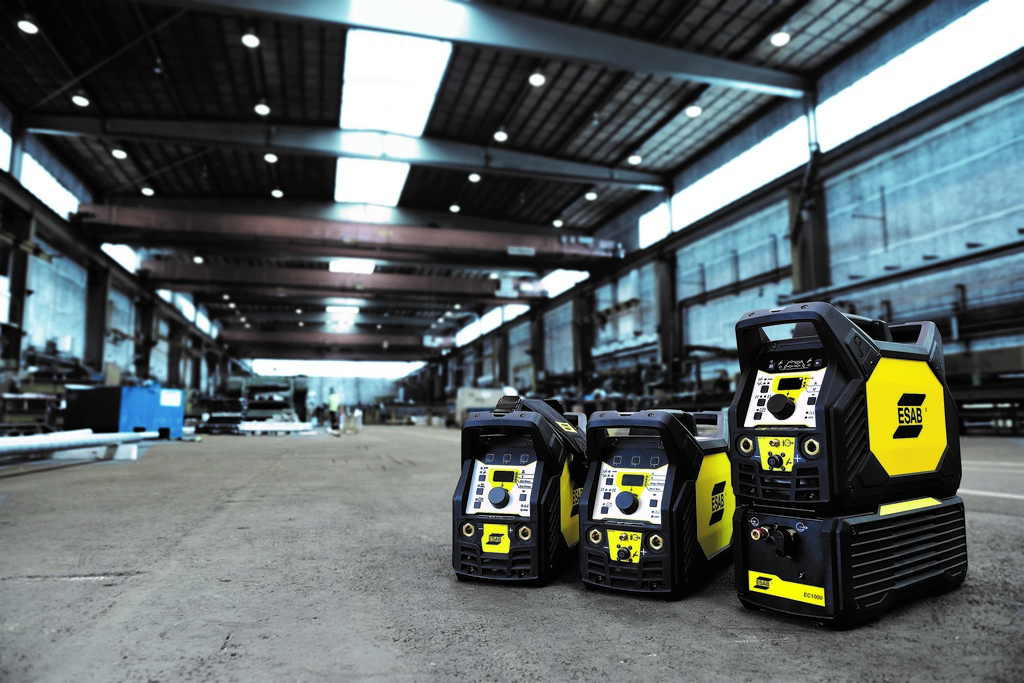

ESAB Welding and Cutting Products has launched its Renegade Series inverters for advanced DC TIG and MMA/Stick welding.

Combining power with low weight and location flexibility, the Renegade Series has three models: Renegade ES 300i for MMA and Live TIG, Renegade ET 300i for MMA and TIG with high frequency (HF) or Lift TIG arc starts and Renegade ET 300iP, which adds controls for pulsed TIG welding.
Renegade ES 300i weighs only 15.5 kg and Renegade ET models weigh 17 kg. All models measure just 460 mm by 200 mm by 320 mm, simplifying trolley maneuvers when configured as a water-cooled system.
With Renegade’s unique handle design offering built-in storage and security for the welding cables, operators can quickly pack up and go by wrapping the cables around the handles and locking them in with a dedicated shoulder strap. Its three-handle roll cage design allows lifting with one hand, both hands, via shoulder strap or by crane. The welder’s rugged composite casing was designed to withstand the roughest environments and more mechanical impact than any other machine on the market.
Renegade runs 300 amps at 40% duty cycle with mains and welding cables up to 100 m and has excellent multi-voltage capabilities. The ET 300i and ET 300iP connect to 230 V 1-phase power and 230 V to 480 V 3-phase power (both ±10 percent) with auto-sensing functionality and no rewiring required. The ES 300i connects to 230 V to 480 V 3-phase power ±10 percent with auto-sensing functionality.
“Re
