M25 cable gland in hygienic design
06 February 2019

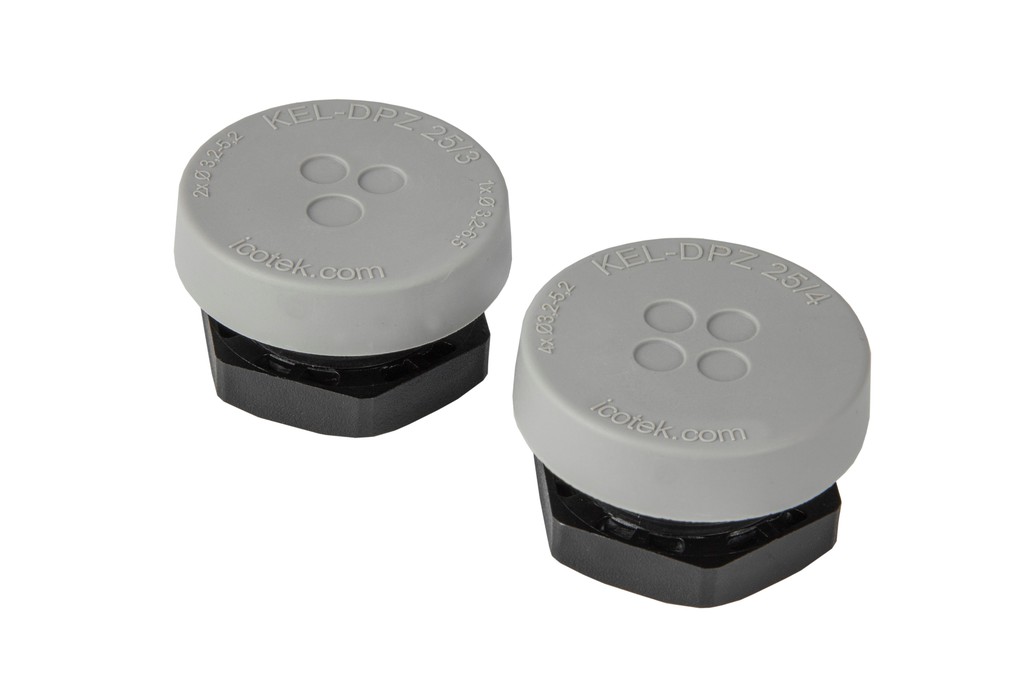

icotek's latest cable gland features a hygienic design. The round-type KEL-DPZ entry plates have an integrated metric thread from M25 to M63. icotek has expanded its range with the metric standard size M25.

The new size allows easy and fast cable entry. Cables of 4 x Ø 3.2 - 5.2mm or 1 x Ø 3.2 - 6.5mm and 2 x Ø 3.2 - 5.2mm can be made. Cables or pneumatic hoses without plugs are quickly and safely routed into control cabinets, panels or machines and be sealed to IP68 / certified to DIN EN 60529: 2000-09 and UL Type 4X. Other certifications such as ECOLAB, cURus, HL3 and more are granted.
Pierced and no longer required membranes are closed again with ST-B plugs. Cables are automatically sealed and strain relieved. The hygienic design does not create any dirt niches.
The KEL-DPZ consists of two components: an insert plate made of elastomer and an integrated polyamide body. Like all icotek products, the KEL-DPZ series is halogen and silicone free. The matching polyamide locknuts are included in the scope of delivery of the KEL-DPZ. Free product samples and certificates are available.
https://www.icotek.com/en-uk/product-catalogue/cable-entry-plates/
