'Multi-pole combination connector for power and signals
22 March 2018

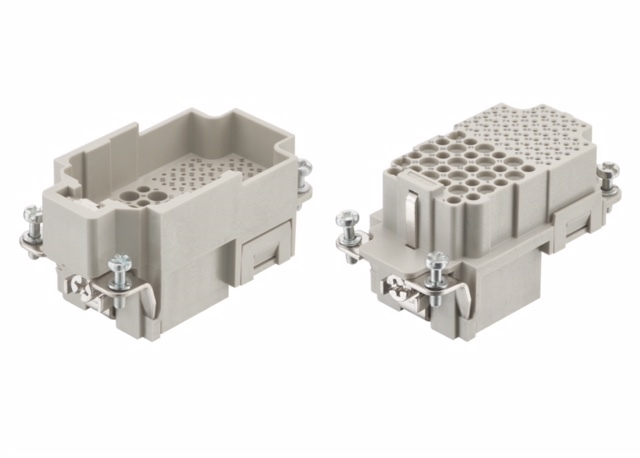

The new Han K32/55 from Harting is said to set new standards in the miniaturisation of rectangular connectors. With a combination of 32 power and 55 signal contacts for use in size 10B housings, this new addition to Harting’s Han-Com product series offers exceptional contact density to save customers time and money.

The Han K32/55 effectively combines two connectors into one by incorporating the crimp contacts of the D series and D-Sub series into a single closed unit, allowing the connection of a maximum of 32 power contacts (10 A/250V/4kV/2) and 55 signal contacts (4A/50 V/0.8kV/2).
Customers can select from silver or gold contact surfaces and can also use existing crimp contacts and tooling. The clear numbering of each contact chamber rules out incorrect wiring during assembly.
Depending on the application and the environmental requirements, the use of the size 10B housing enables flexible installation in compatible metal housings including Han B, Han M, Han EMC, Han HPR and Han-INOX.
