Proportional solenoid valves: Now even smaller

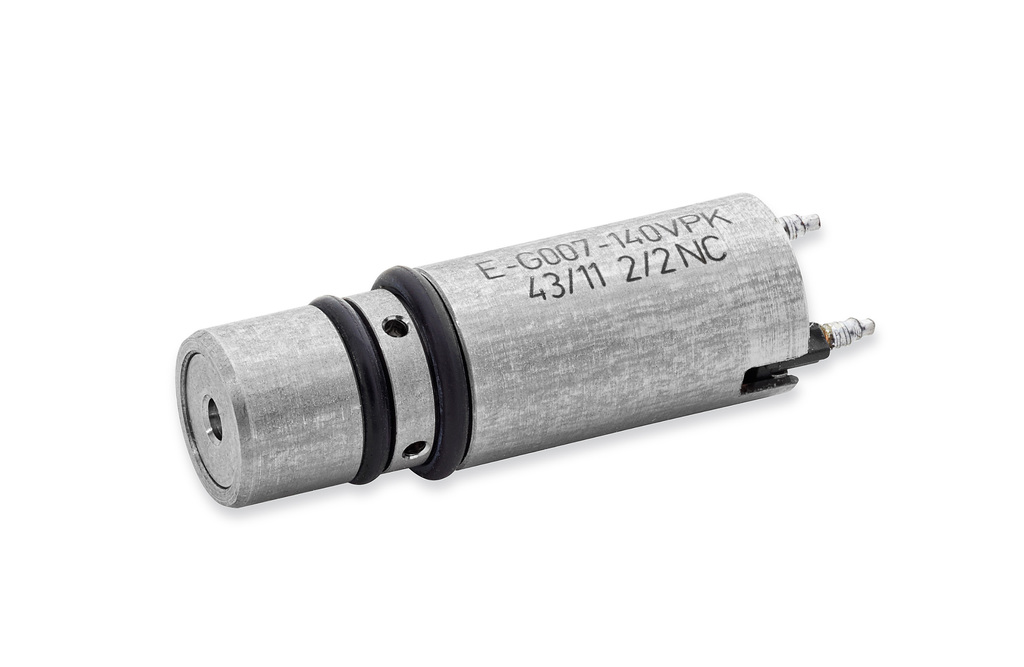

Despite more than halving the diameter of the new valve over its nearest sibling (the 16mm diameter VPRM-016), the VPKM-007 delivers similarly large performance, including high linearity for effective proportional control and low hysteresis for highly responsive operation, and a higher static pressure tolerance in its armature space of up to 40 bar.

Like its 16mm and 20mm siblings, the VPKM-007 addresses precision proportional air and gas control requirement across multiple market sectors but offers a physical advantage for equipment designers and installers in space-compromised small and miniaturised applications. These typically include air volume control, dosing of inert gases, gas regulation in vehicles, gas and oxygen mixing in respirators and medical equipment, flow control in fuel cells for energy generation, to name a few.

The 7mm diameter VPKM delivers the advantage of fully proportional, direct-acting gas flow control, which contrasts with on/off valves typically deployed in these types of application. The unit is available in pressure supported open, closed and pressure balanced configuration. Nominal rated flow is 7L/min. Switching service life is 50 million cycles. VPKM-007 operates from a 24V DC supply, with electrical connections via solder pins.

More information at: www.magnetschultz.co.uk/products/solenoids/fluidpower-solenoids-pneumatic

Datasheet available at: www.magnetschultz.co.uk/wp-content/uploads/VPKM007_e.pdf
