Snug fit for SICK's miniature inductive safety switch
03 August 2021
INDUCTIVE SAFETY switches introduced by SICK provide designers and operators with a compact cuboid-shaped non-contact device that can be fitted easily into the smallest machine spaces.

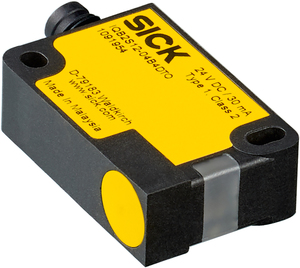

The SICK IQB2S inductive safety switch uses non-contact activation by metallic machine parts to achieve reliable, safe position, presence and area monitoring in common production and logistics safety applications.

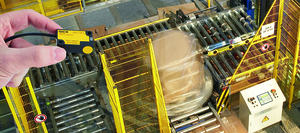

It is therefore suitable for many applications including, for example, checking the safe position of the axes of rotating tables to ensure safe conveying of the goods, or for the safe presence monitoring of a load on an Automated Guided Vehicle (AGV).
SICK has developed the IQB2S to measure just 12mm x 26mm x 40mm, with a sensing range of 4mm. Easy to align, it can be screwed directly into place, and does not need a separate actuator. With twin self-monitoring OSSD outputs, the SICK IQB 2S enables direct connection to safe control systems including SICK Flexi Soft and the SICK Flexi Loop cable-saving connection system, allowing for applications up to PLd /SIL2 (BS EN ISO 13849).
Dr Martin Kidman, safety specialist at SICK UK, says: “By using the inductive sensing principle to detect metal parts, the SICK IQB2S offers an opportunity to provide safe proximity or position sensing to a high safety rating where space is tight in either new or existing machines.
“The non-contact principle also means the sensors are not subject to wear and need little maintenance over a long service life, ensuring high reliability and machine availability, even in environments subject to high levels of dust or moisture.”
Setting up the SICK IQB 2S is quick and straightforward. Its precise switching point means there is no blind zone, allowing for rapid alignment and adjustment. The on-board 270° LED enables operators to monitor the sensor status and a display of diagnostic messages minimises unforeseen machine stoppages.
With a IP67-rated enclosure, and a wide temperature range from -25°C to 70°C, the SICK IQB2S ensures high machine availability in the toughest of industrial conditions.
For more information on the SICK range of products, please contact Andrea Hornby [email protected] or visit: https://www.sick.com/gb/en/sick-united-kingdom/w/sick/
