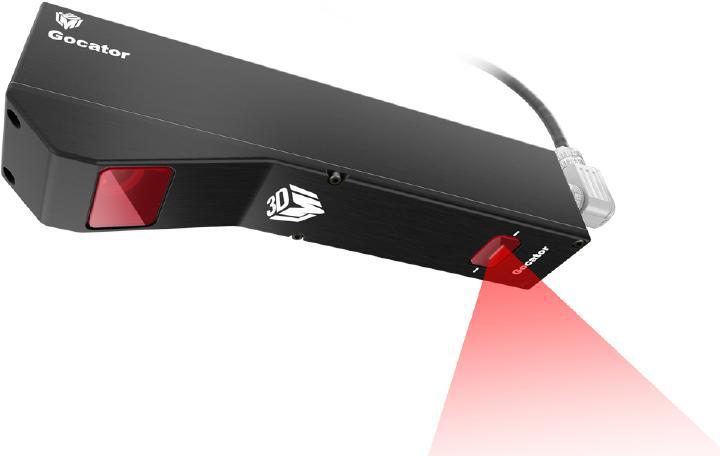

Laser profiler for 3D measurement & inspection of large scan targets

High-resolution 3D scanning at production speed

In packaging and logistics applications, Gocator 2490 is able to scan 1 m X 1 m packages at 800 Hz, with resolutions of 2.5 mm in all three dimensions (X, Y, Z)––even at conveyor speeds of 2 m/s. Competing systems typically offer just 3-5 mm resolution and are therefore less accurate in volume measurement. The sensor is also used for robust surface inspection and pass/fail control of defects such as packaging dents, tears, punctures, and folds.

Ultra-wide field of view & large measurement range

Gocator 2490’s combination of wide field of view and large measurement range allows engineers to cover a very large scan area with a single sensor, and is suitable for applications such as volume dimensioning of packages in warehouse automation, automotive body frame inspection, monitoring loading levels on wide conveyor belt systems, sawmill board optimisation, and high-volume food processing inspection.

“Gocator 2490 offers a unique, wide field of view, all-in-one sensor solution for cost sensitive applications that require volume and defect measurement. Fully loaded with Gocator software inside the sensor, the G2490 can build detailed surface information of large objects and apply measurement tools in real-time to drive factory automation everywhere,” said Terry Arden, CEO, LMI Technologies.

Gocator 2490 is now available for order at [email protected]
