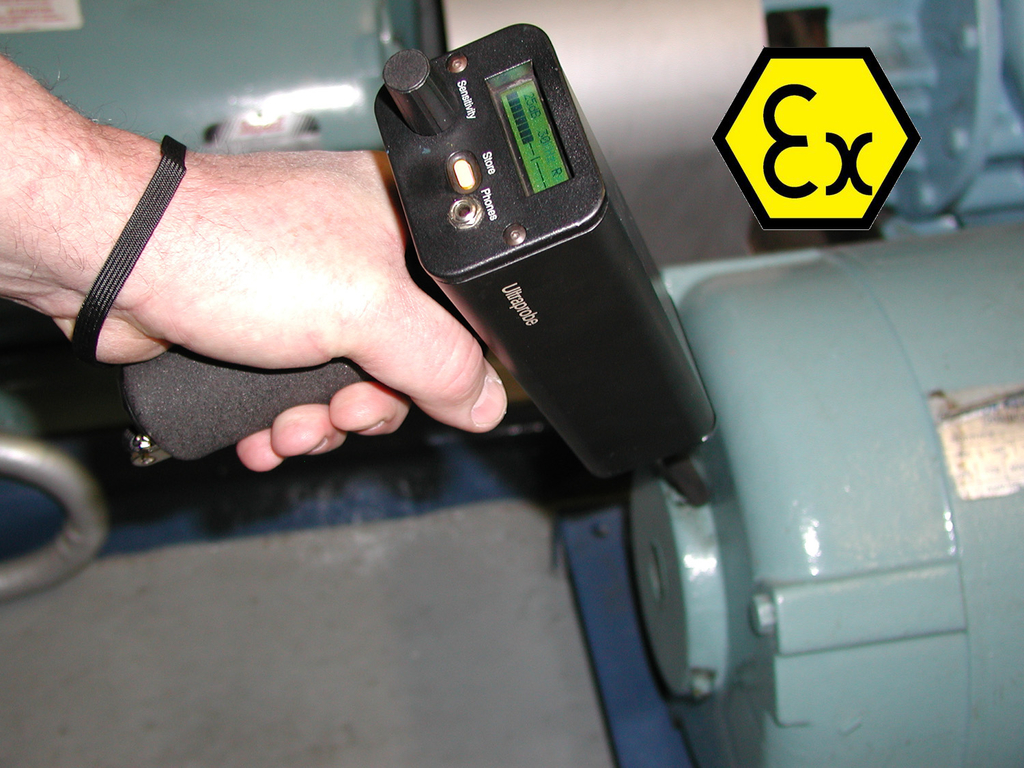

Ultraprobe 9000 (ATEX)

The Ultraprobe® 9000 is a digital ultrasonic inspection, information, storage and retrieval system that’s versatile and easy to use.

This Ultraprobe will help move you through inspections quickly and easily -most operators learn within 15 minutes.

Whether used for troubleshooting or a pre-planned route, data is easily viewed on the display panel and stored with the push of a button. The easy-to-read display panel offers calibrated decibel readout and a 16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold as you scan.

• Establish a bearing route to identify early bearing failure & lubrication problems
• Find your leaks & report cost per leak with DMS reporting
• Inspect for faulty steam traps
• Inspect electrical systems for discharge problems

Why Choose this instrument?

• Easy to use
• Adjustable Frequency from 20 kHz  to 100 kHz
• Accurate & repeatable digital data
• Ideally for point & shoot trouble shooting & data collection programs
• Comes with license free data management software (DMS) to efficiently manage & report asset condition

On board data logging utilizing Ultratrend DMS™ providing:

• Manage routes
• Up & download via USB connection
• Multiple data views
• History tables/spreadsheets
• Trend charts
• Export database & report documents to Excel

UE Systems unique Spin and Click™ technology makes sophisticated inspection simple and quick!

You’ll be amazed at how much you can accomplish with only 2 controls. By just “spinning” and “clicking” you can go through your inspection quick and easy:

• Store data
• Change frequency and sensitivity settings
• Adjust basic operation modes
• Selecting “Snap Shot”, “Peak Hold” & “Real Time” functions… and more!

For use in hazardous environments, an ATEX or EX rated model is also available.

Complete with everything you need for accurate route inspection, the Ultraprobe 9000 includes standard:

• ULTRAPROBE pistol grip housing is the main control unit. It consists of the display panel, the “spin & click” controls for volume/frequency adjustment, data entry and data storage, the headphone jack, battery, I/O port, trigger on/off switch and module receptacle.
• Deluxe industrial noise reducing headset
• Data cable I/O to USB
• Battery recharge kit for main housing and warble tone generator
• Zero Halliburton aluminum carrying case
• Comprehensive instruction manual
• License & update free included DMS software

For further components per kit configuration:

UP9000LRM: ULTRAPROBE 9000 LONG RANGE KIT

• Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
• Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
• Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
• Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
• Warble tone generator with amplitude selection switch for use in tone test method
• Long range module (LRM-9) for more accurate & extended range of detection for leak detection or electrical emissions

UP9000CFM: ULTRAPROBE 9000 CLOSE FOCUS KIT

• Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
• Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
• Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
• Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
• Warble tone generator with amplitude selection switch for use in tone test method
• Close focus module (CFM-9) for low level leaks & vacuum leak detection

UP9000KT: ULTRAPROBE 9000 KIT

• Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
• Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
• Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
• Extension rod set to increase stethoscope contact range to 31 inch (78 cm)
• Warble tone generator with amplitude selection switch for use in tone test method

UP9000SC: ULTRAPROBE 9000 STETHOSCOPE / SCANNER KIT

• Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
• Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound
• Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
• Extension rod set to increase stethoscope contact range to 31 inch (78 cm)

UP9000S: ULTRAPROBE 9000 SCANNER KIT

• Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
• Rubber focusing cone for narrowing reception band of scanning module and for blocking out ambient ultrasound

UP9000C: ULTRAPROBE 9000 STETHOSCOPE KIT

• Stethoscope (contact) module for monitoring internal ultrasound such as in bearings, steam traps and valves
• Extension rod set to increase stethoscope contact range to 31 inch (78 cm)

UP9000ATEX

• ULTRAPROBE pistol grip housing is the main control unit. It consists of the display panel, the “spin & click” controls for volume/frequency adjustment, data entry and data storage, the headphone jack, battery, I/O port, trigger on/off switch and module receptacle.
• Deluxe industrial noise reducing headset
• Data cable I/O to USB
• Battery recharge kit for main housing and warble tone generator
• Zero Halliburton aluminum carrying case
• Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions – ATEX rated
• Rubber focusing probe for narrowing reception band of scanning module and for blocking out ambient ultrasound
• Stethoscope (contact type) probe for monitoring internal ultrasound such as in bearings, steam traps and valves – ATEX rated
• Extension probe kit to increase stethoscope contact range to 31 inch (78 cm)
• Warble tone generator with amplitude selection switch for use in tone test method
• Comprehensive instruction manual
• License & update free included DMS software

All Ultraprobe instruments are CE approved.
