Ultraprobe 10.000

The ultimate digital ultrasonic inspection system for condition monitoring with sound recording for analysis.

The Ultraprobe 10.000 brings ultrasound inspection technology to a whole new level. With this one system, inspectors can perform condition analysis, record sounds, store and manage data.

Can be used for ALL ultrasound applications & programs

• Setup bearing data collection routes, analyze & create lubrication routes

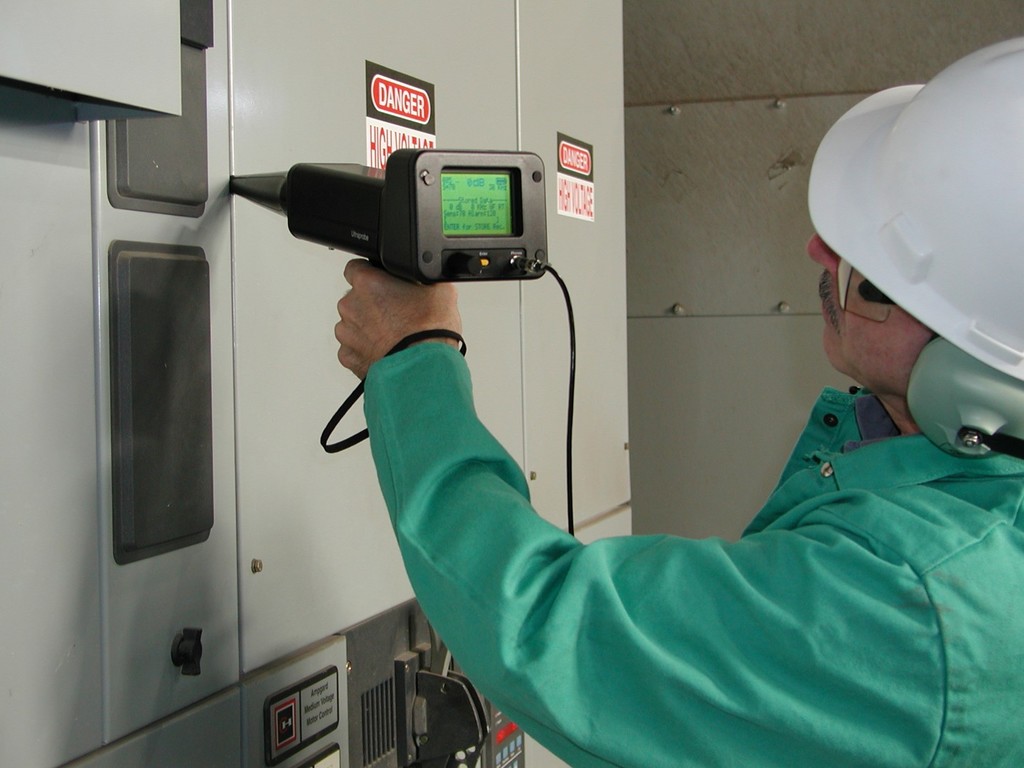

• Inspect electrical systems for faults, analyze on the spot & report
• Inspect for faulty steam traps
• Find your leaks & report cost per leak with DMS reporting

Why Choose this instrument?

• Enables all the possibilities to inspect, report & analyze with ultrasound
• Accurate & repeatable digital data
• Adjustable Frequency from 20 kHz  to 100 kHz
• On-board sound recording
• Ideally for troubleshooting, analyses & data collection programs
• Comes with license free data management (DMS) & Spectrum analysis software to manage & report asset condition

On board data logging utilizing Ultratrend DMS™ providing:

• Ability to manage routes
• Upload & download via USB connection
• Multiple data views
• History tables/spread sheets
• Trend charts
• Export database & report documents to Excel

On board sound recording utilizing Spectralyzer™ software providing:

• Analyze sound files in FFT & Time series
• Create analysis reports
• Overlay historical recordings for comparisons
• Diagnose electrical faults
• Bearing fault calculator for defect confirmation

The Ultraprobe 10.000 simplifies sound recording with user-friendly Spin and Click™ technology

The Ultraprobe 10.000 features onboard Sound Recording with a push of a button. You’ll record a sound sample directly into the instrument and link it to one of 400 record files stored in the Ultraprobe!

Test the way you want with:

• Specialized application screens
• Adjustable on/off features
• Connection to external devices
• Flexible reporting options

The Ultraprobe 10.000 kit comes loaded with all the accessories you need for effective condition monitoring and includes standard:

• ULTRAPROBE pistol grip housing. It consists of the display panel, “spin & click” controls, the headphone jack, SD card and module receptacle, on-board data logging & battery.
• SD card reader
• Deluxe industrial noise reducing headset
• Battery recharge kit for main housing and warble tone generator
• Spare battery
• Zero Halliburton aluminum carrying case
• Warble tone generator with amplitude selection switch for use in tone test method
• Remote access module (RAM) to connect remote sensors
• Magnetic mount remote sensor (RAS-MT) with cable for consistency in testing bearings & oil cooled transformers
• Trisonic scanning module for locating airborne ultrasound such as pressure, vacuum and electrical emissions
• Rubber focusing probe for narrowing reception band of scanning module and for blocking out ambient ultrasound
• Stethoscope (contact type) probe for monitoring internal ultrasound such as in bearings, steam traps and valves
• Extension probe kit to increase stethoscope contact range to 31 inch (78 cm)
• Long range module with laser pointer (LRML-10) for more accurate & extended range of detection for leak detection or electrical emissions
• Belt holster for easy carrying
• Comprehensive instruction manual
• License & update free included DMS software!
• License & update free included Spectralyzer software!
