New four-channel universal amplifier
25 January 2013
HBM's MX440A is a 4-channel universal amplifier that supports up to 15 different transducer types per channel. All four channels can be individually configured and used for measuring a wide range of thermal, mechanical o

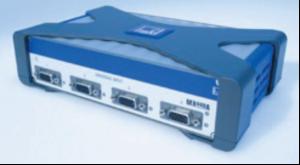

HBM's MX440A is a 4-channel universal
amplifier that supports up to 15 different
transducer types per channel. All four
channels can be individually configured and
used for measuring a wide range of thermal,
mechanical or electrical quantities such as
force, displacement, torque, temperature,
pressure, rotational speed, position, speed,
acceleration, voltage or current.
The amplifier is designed to complement the QuantumX system. It supports, for example, half- and full-bridge circuits (straingage and inductive transducers), resistors, piezo-resistive transducers, potentiometers, voltage, current, thermocouples, LVDT, pulse counters and rotary encoders. Input channels are electrically isolated and each provides one 24-bit analog-to-digital converter.
Ethernet TCP/IP and automatic configuration allow for easy and fast connection to the PC.
Features include Advanced Plug & Measure, enabling TEDS transducers and sensors to automatically configure the channel.
The amplifier is designed to complement the QuantumX system. It supports, for example, half- and full-bridge circuits (straingage and inductive transducers), resistors, piezo-resistive transducers, potentiometers, voltage, current, thermocouples, LVDT, pulse counters and rotary encoders. Input channels are electrically isolated and each provides one 24-bit analog-to-digital converter.
Ethernet TCP/IP and automatic configuration allow for easy and fast connection to the PC.
Features include Advanced Plug & Measure, enabling TEDS transducers and sensors to automatically configure the channel.
