Sensors on show
02 September 2014

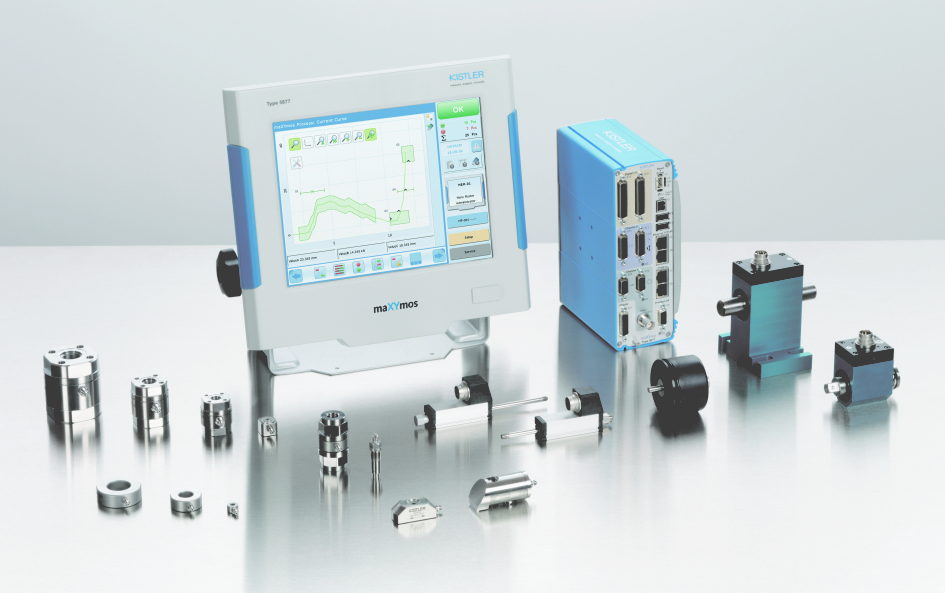

Kistler Instruments will be showing the maXYmos TL process and part quality monitoring system with a wide range of compatible sensors.

Building on the success of the maXYmos BL version, the maXYmos TL ('Top Level') has increased capability with up to 8 XY channels and compatibility with a wide range of sensor types and communication protocols making it suitable for a variety of demanding process monitoring and product testing applications.
The maXYmos TL may be used for the same simple force-displacement monitoring as the basic version but the extended functionality makes more challenging assembly and product testing applications well within its capability. Key features include more powerful evaluation techniques, a larger selection of connectable sensors, wide range of fieldbus types, expandability up to 8 pairs of XY-channels and a 10.4in, high-resolution, colour touch screen display.
The fast data acquisition rate of 20kHz and cycle times down to 0.05 second, compatibility with a wide range of force, torque, pressure, position and angle sensors and communication with a number of different PLC types using Profibus DP, Ethernet/IP, PROFINET & EtherCAT connectivity provides the speed and flexibility demanded by current production methods and test regimes.
The system can accept signal input from a wide selection of sources including strain gauge, piezoelectric and potentiometer sensors, +/-10V, LVDT, incremental and SSI encoders. The system analyses the relationship between any two inputs or one input against time and can be expanded to monitor up to eight XY pairs using one master display. Stand 404
