Cable entry system
23 July 2013
The range of icotek cable management products available from M Buttkereit has been extended to include the KEL-ER range which covers a split cable entry system, currently suitable for cables from 2 to 14mm diameter, but also including pre-terminated products.

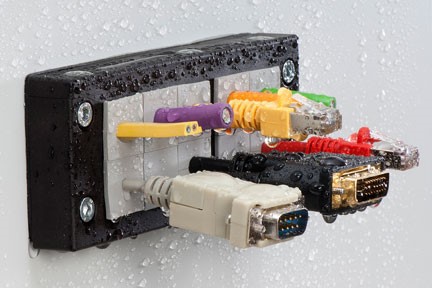

As well as providing cable strain-relief according to DIN EN 50262, the product design ensures IP65 sealing. These products are said to offer savings for cable entry requirements in extreme conditions, where IP65 protection forms an essential part of the installation specification.

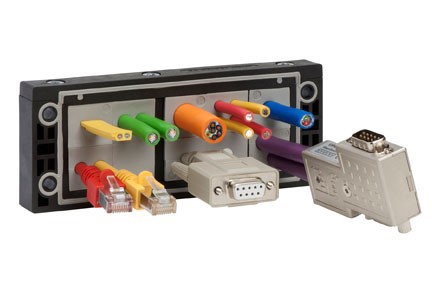

The KEL-ER system features top-opening black Polyamide frames, used in conjunction with grey elastomer inserts and appropriate gasketing which are all sealed tight when the frame lid is fitted and the assembly screwed into position. This ensures appropriate cable strain relief as well as the IP65 class protection for the complete installation.

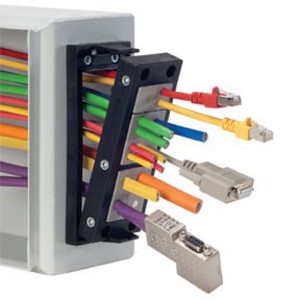

Frames match exactly the dimensions for 10, 16 or 24 pole standard connection cut-outs, together with KEL-SNAP frames, base and flange plates as well as module plates for Rittal cabinets. EMC shielding can be incorporated as a KEL-EMC-Z assembly with strain relief, including a KDR-ESR base plate assembly for slide fitments into cabinets.
 |
 |
