Hand-hydraulic punch driver,

The tools do not require hose connections and are capable of providing appropriate cut-outs for a wide range of cable entry system products.

The hydraulic punch drivers use special geometry punches which minimise both the cutting pressure and associated manual effort required for operation. The hydraulic cylinder incorporated with each punch driver can be rotated 360° on three axes, boosting tool versatility for operation in hard-to-reach or otherwise cramped working conditions.

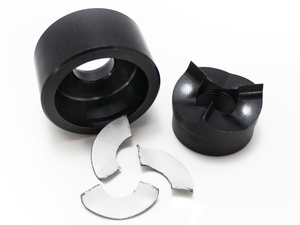

The tool can be used to punch holes in stainless VA steel (up to 2mm thick), together with mild steel, aluminium or plastics up to 3mm sheet thickness. With a pilot hole of 10mm diameter, round knock-out punches are available for standard cut-outs PG16, M16, M20 and M25. With an M20/20.3mm diameter pilot hole, standard cut-outs to cover M32, M40, M50 and M63 sizes can be achieved. For the square/rectangular cut-outs, a pilot hole of M25/25.5mm diameter is required for which a standard punch tooling is available to cover two cut-out sizes of 46mm x either 46 or 112mm, together with 36mm x  65, 86 or 112mm respectively.

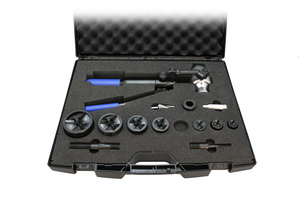

Individual box sets are available incorporating appropriate punches, dies and draw studs used either with a counter nut or spacer for the optional hand-hydraulic punch driver tools.
