Modular motor

The motor will be available as an integral motor for gearboxes and as a standard induction motor with mounting positions B3, B4 and B14. The motors are initially available in two-pole, four-pole and six-pole versions with IEC 63 to IEC 160 frame sizes and power ratings from 0,12 to 18.5 kW. Frame sizes from 180 to 315 will follow.

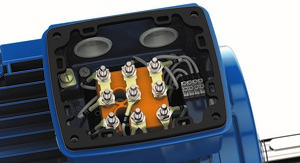

The EUSAS motor combines the energy-efficient WEG motor technology with Watt Drive’s tried and tested MAS modular gear unit system. Due to their wide voltage range and easy voltage reconfiguration in the terminal box, the motors can be used worldwide at a variety of mains voltages (100 to 690V) and frequencies (50 and 60Hz).
